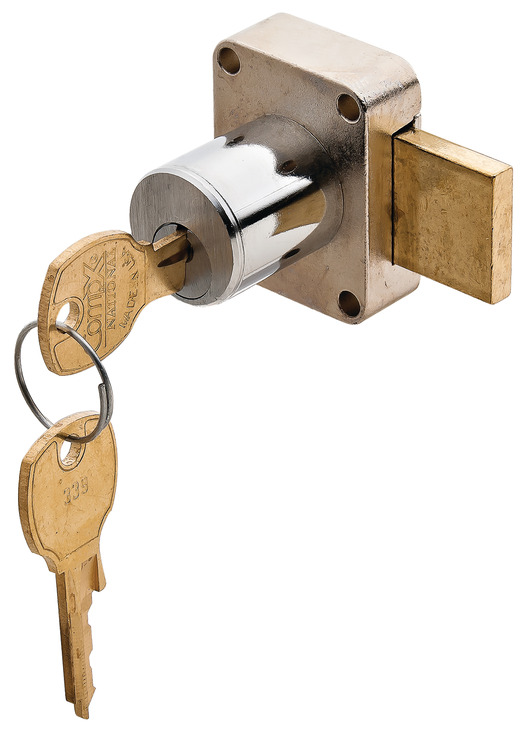

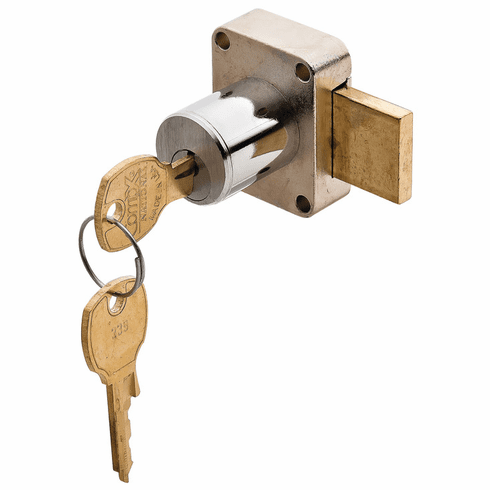

Hafele 232.14.500 Cabinet Door Lock, C8173 Series, Keyed Different National Lock - High Security, Satin brass

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.14.500

  Product Title: Cabinet Door Lock, C8173 Series, Keyed Different, National Lock - High Security, Satin brass

  Category: Cabinet Door Lock, C8173 Series, Keyed Different, National Lock - High Security

  Item Details …

  - The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" hex wrench from the back to remove the cylinder for re-keying.

  - Approved by the Woodworkers Institute (formerly WIC)

  - Custom Master keying and General Master key systems available upon request

  - 2500 key changes are possible, special order 5 pin tumblers

  - Please include a key plan

  - Plan on 2–3 weeks to produce

  - Material : Lock and Keys: Brass-platedStrike: Brass-plated

  - Mounting : Door lock

  - Area of application : For right or left hand applications

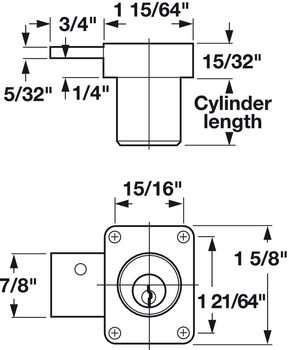

  - Installation : Surface mounted, requires a ø57/64" hole

  - Bolt throw : 3/4"

  - Finish : Satin brass

  - Supplied with:

  - 2 keys

  - Strike plate

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.37



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.36-10.37.pdf

  Hafele 232.14.500, 232-14-500, 23214500, 232.14
