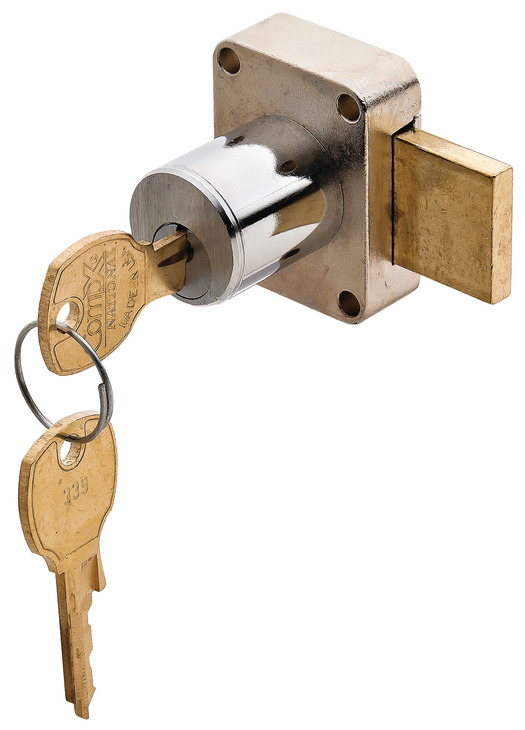

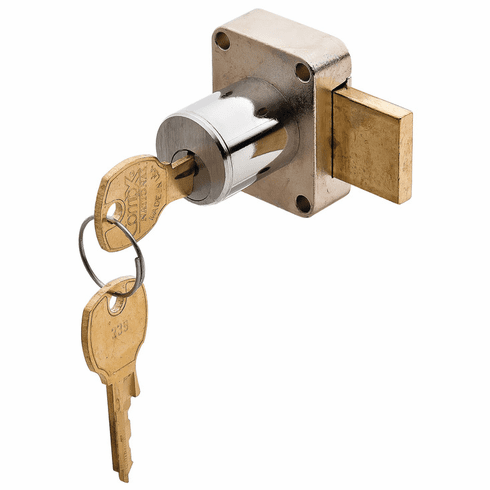

Hafele 232.14.497 Cabinet Door Lock, C8173 Series, Master Keyed, Keyed Different National Lock - High Security

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.14.497

  Product Title: Cabinet Door Lock, C8173 Series, Master Keyed, Keyed Different, National Lock - High Security

  Category: Cabinet Door Lock, C8173 Series, Master Keyed, Keyed Different, National Lock - High Security

  Item Details …

  - The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" hex wrench from the back to remove the cylinder for re-keying.

  - Approved by the Woodworkers Institute (formerly WIC)

  - Random key numbers only - no specific key numbers can be specified

  - Please order master key separately

  - Model : C8173-MKKD-26D

  - Material : Lock and Keys: Brass-platedStrike: Brass-plated

  - Mounting : Door lock

  - Key change : Random key numbers only – no specific key numbers can be specified

  - Color/finish : Brushed chrome

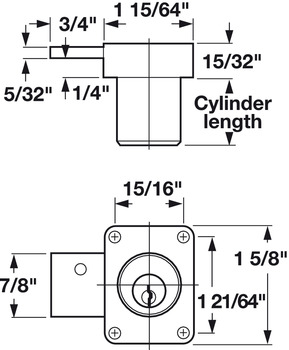

  - Installation : Surface mounted, requires a ø57/64" hole

  - Bolt throw : 3/4"

  - Finish : Brushed chrome

  - Supplied with:

  - 2 keys

  - Strike plate

  - Screws
