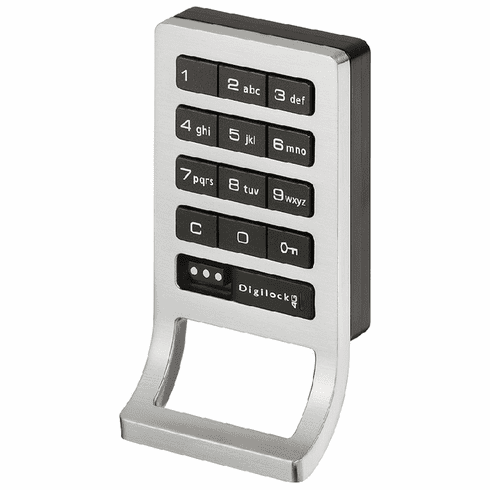

Hafele 231.98.111 PIN Code Lock, Advanced Security Steel, Dead bolt, multi-use mode

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.98.111

  Product Title: PIN Code Lock, Advanced Security, Steel, Dead bolt, multi-use mode

  Category: PIN Code Lock, Advanced Security, Steel

  Item Details …

  - Advanced security

  - ADA compliant

  - Visual and acoustic occupancy indicators with low battery alarm

  - Choice of locking with individually selected code or permanently assigned code

  - Color/finish : Keypad: Frame and handle, stainless steel colouredPush buttons: BlackLock case: Black, Keypad: Bright nickel with black keyslock housing: Black

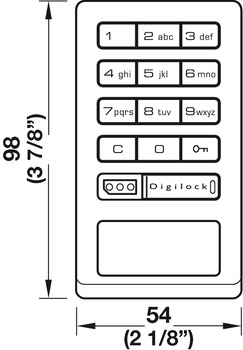

  - Dim. (L x W x H) : 98 x 54 x 33 mm

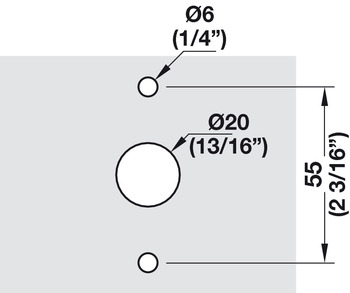

  - Installation : for screw fixing

  - Mounting : Left hand or right hand

  - Length (inch) : 3 7/8"

  - Width (inch) : 2 1/8"

  - Height (inch) : 1 5/16"

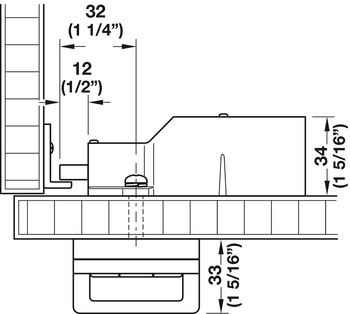

  - For door thickness min. : 11/16"

  - For door thickness max. : 7/8"

  - Data-driven technical data table :

  - Area of application : For lockers, dressing room cabinets with doors made from wood

  - Material : Keypad: Zinc alloyLock housing: Steel

  - Functionality : Locking and unlocking with freely selectable PIN codelatchbolt or deadbolt functionoptical (red LED flashes when locked) and acoustic (during locking action) occupancy indicator, with tamper resistancealarm when battery is low (external voltage supply possible with master key)locking with individual 4-digit code for every individual locking action (free choice of locker) or permanently allocated 4-digit code for all locking actions (fixed locker allocation)

  - For door thickness : 17.5–21.7 mm

  - with key : No

  - Supplied with:

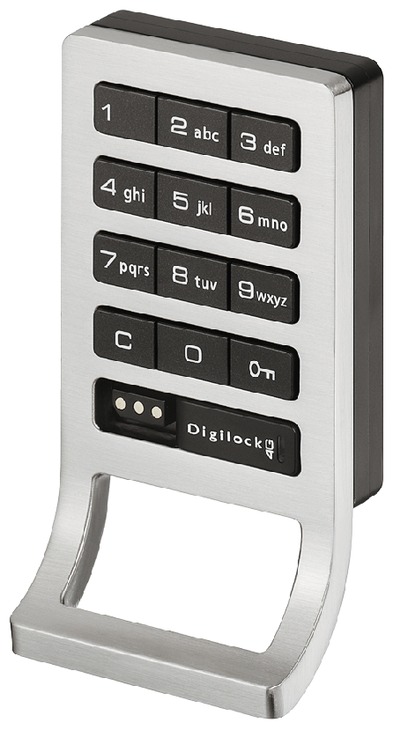

  - Keypad

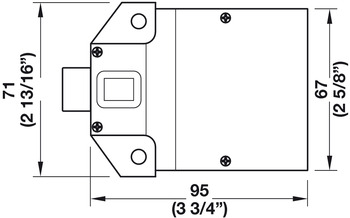

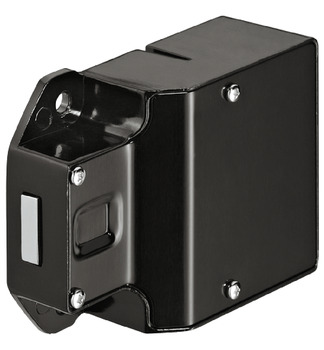

  - Lock

  - 4 AA batteries

  - Mounting screws

  - Instructions
