Hafele 231.98.090 Keypad Lock, Safe-O-Tronic LS 150 Vertical with knob at top, black

Product Information

• Description

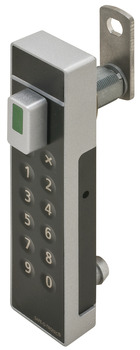

  Hafele 231.98.090 Keypad Lock, Safe-O-Tronic® LS 150
  Vertical with knob at top, black

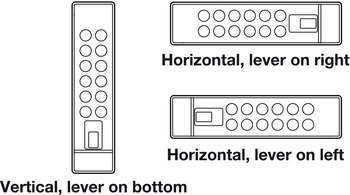

  Version : Vertical, Lever on top

  Color : Black RH/LH

  Model series : LS150

  Application : For installation in wood, laminate, plastic and metal doors and drawers

  Suitable for : Interior use

  Material : Lock body: Aluminum
  Face plate: Plastic
  Cam: Steel

  Technical data :

  Tensil load limit	1000 N. (225 lbf.)
  Environmental
  Operating temp	-10° C to 65° C (14° F to 150° F)
  Humidity (operating)	0 to 90%, non-condensing
  Protection	IP 43
  Electrical
  Supply Voltage	4.5 VDC
  Connections	Battery pack, self-contained
  Battery Life	32,000 lock cycles
  Standards Compliance	CE



  Note :

  LS 150 programming key set required for programming and master key operation (see below).

  Batteries changed with Torx„¢ screw driver (see below).





  Supplied with :

  Nut

  Straight cam

  Mounting screw

  Spacers

  Instructions

  3-AAA battery pack



  Optional items:
  Programming Key Set, for LS 150
  Battery Pack, for SAFE-O-TRONIC® Access Locker Lock
  Screwdriver, for SAFE-O-TRONIC® Access Locker Lock


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.75-10.75.pdf

  Hafele 231.98.090, 231-98-090, 23198090, 231.98


  Specifications/Hafele Catalog - Page# FC10.79: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
