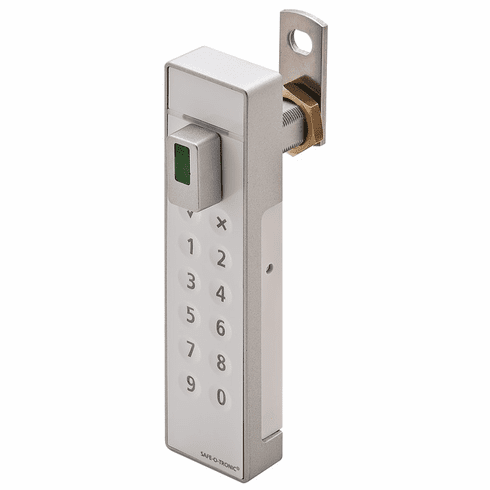

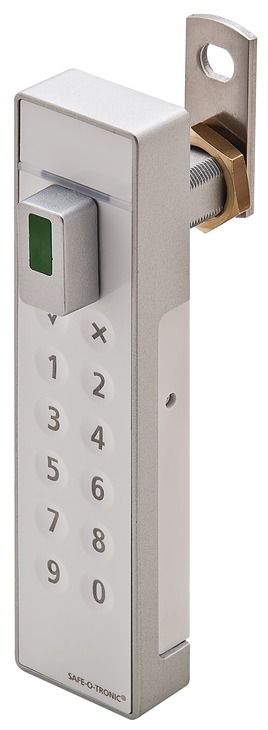

Hafele 231.98.017 Keypad Lock, Safe-O-Tronic LS200 Horizontal right with knob on left, white
Product Information
Description
Manufacturer: Hafele
Item: 231.98.017
Product Title: Keypad Lock, Safe-O-Tronic LS200, Horizontal right with knob on left, white
Category: Keypad Lock, Safe-O-Tronic® LS200,
Item Details …
- Tecnical Data
- Tensile load limit 1000 N. (225 lbf.)
- Environmental Operating temp. -10° C to 65° C (14º F to 150º F)
- Humidity (operating) 0 to 90%, non-condensing
- Protection IP 43
- Electrical Supply voltage 4.5 VDC
- Connections Battery pack, self-contained
- Battery Life 32,000 lock cycles
- Standards Compliance CE
- Lock complies with ADA standards for door locks
- Lock is easily programmed by user with easy to use keypad

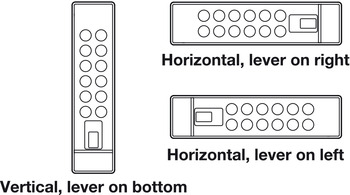

- Lock mounts vertically for raised panel doors
- Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
- Low battery indicator via external LEDs
- Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
- Long battery life (10 lock cycles per day for four years)
- Easy installation with only two drill points
- One programming key set required for project
- Operation modes : Day Use Mode, Fixed Use Mode

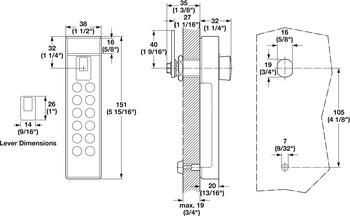

- Dim. (L x W x H) : 151 x 38 x 33 mm
- Model series : LS200
- Data-driven technical data table :
- Area of application : For installation in wood, laminate, plastic and metal doors and drawers
- Material : Lock body: AluminumFace plate: PlasticCam: Steel
- For door thickness : ≤19 mm
- Installation reference : SAFE-O-TRONIC access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.Lock complies with ADA standards for door locksLock is easily programmed by user with easy to use keypadLock mounts vertically for raised panel doorsLock powered by a 3-AAA battery pack (included)(item 231.98.210)Low battery indicator via external LEDsDesigned to pass the ANSI/BIFMA 50 lbf. pull strength specificationLong battery life (10 lock cycles per day for four years)Easy installation with only two drill pointsOne programming key set required for project
- Supplied with:
- Nut
- Straight cam
- Mounting screw
- Spacers
- Instructions
- 3-AAA battery pack
Additional Information …
LS 200 programming key set required for programming and master key operation (see below)Batteries changed with Torxâ„¢ screw driver (see below).Data Sheet
