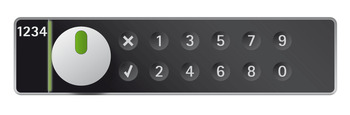

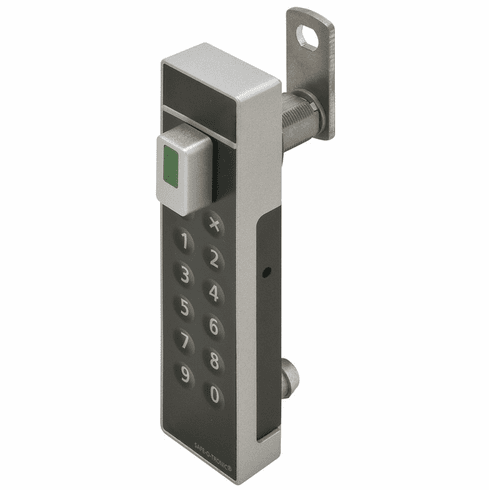

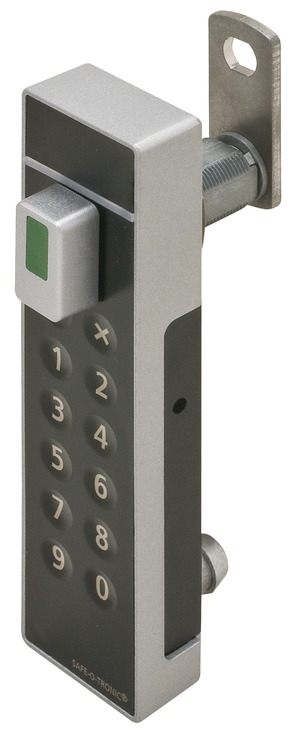

Hafele 231.98.002 Keypad Lock, Safe-O-Tronic LS100 Horizontal right with knob on left, black

Product Information

• Description

  Hafele 231.98.002 Keypad Lock, Safe-O-Tronic® LS100

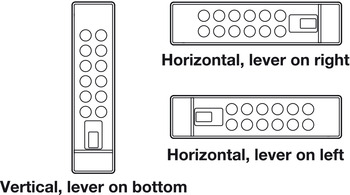

  Horizontal right with knob on left, black



  Model series : LS100

  Application : For interior use
  For installation in wood, laminate, plastic and metal doors and drawers

  Material : Lock body: Aluminum
  Face plate: Plastic
  Cam: Steel

  Technical data :

  Tensile load limit	1000 N. (225 lbf.)
  Environmental
  Operating temp.	-10°C to 65°C (14°F to 150°F)
  Humidity (operating)	0 - 90%, non-condensing
  Protection	IP 43
  Electrical
  Supply voltage	4.5 VDC
  Connections	Battery pack, self-contained
  Battery life	32,000 lock cycles
  Standards compliance	CE

  Operating Modes

  Day Use Mode:

  - Allows the user to choose their code at time of operation

  -Recommended for shared lockers or cabinets in a typical fitness locker room application



  Note :

  Batteries changed with Torx® screw driver (listed below)





  Supplied with :

  Nut

  Straight cam

  Mounting screw

  Instructions



  Optional items:
  Battery Pack, for SAFE-O-TRONIC® Access Locker Lock
  Screwdriver, for SAFE-O-TRONIC® Access Locker Lock

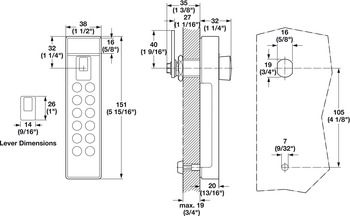

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.74-10.74.pdf

  Hafele 231.98.002, 231-98-002, 23198002, 231.98


  Specifications/Hafele Catalog - Page# FC10.78: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
