Hafele 231.53.817 Safe-O-Mat - Coin Return, 800 Series For wood laminate or plastic lockers, 1 token, right hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.53.817

  Product Title: Safe-O-Mat - Coin Return, 800 Series, For wood laminate or plastic lockers, 1 token, right hand

  Category: Safe-O-Mat® - Coin Return, 800 Series, For wood laminate or plastic lockers

  Item Details …

  -

  - To Unlock:

  -

  - Insert and turn key to retract bolt, coin is returned to Coins (s) Return Catch.

  - Color/finish : Gray

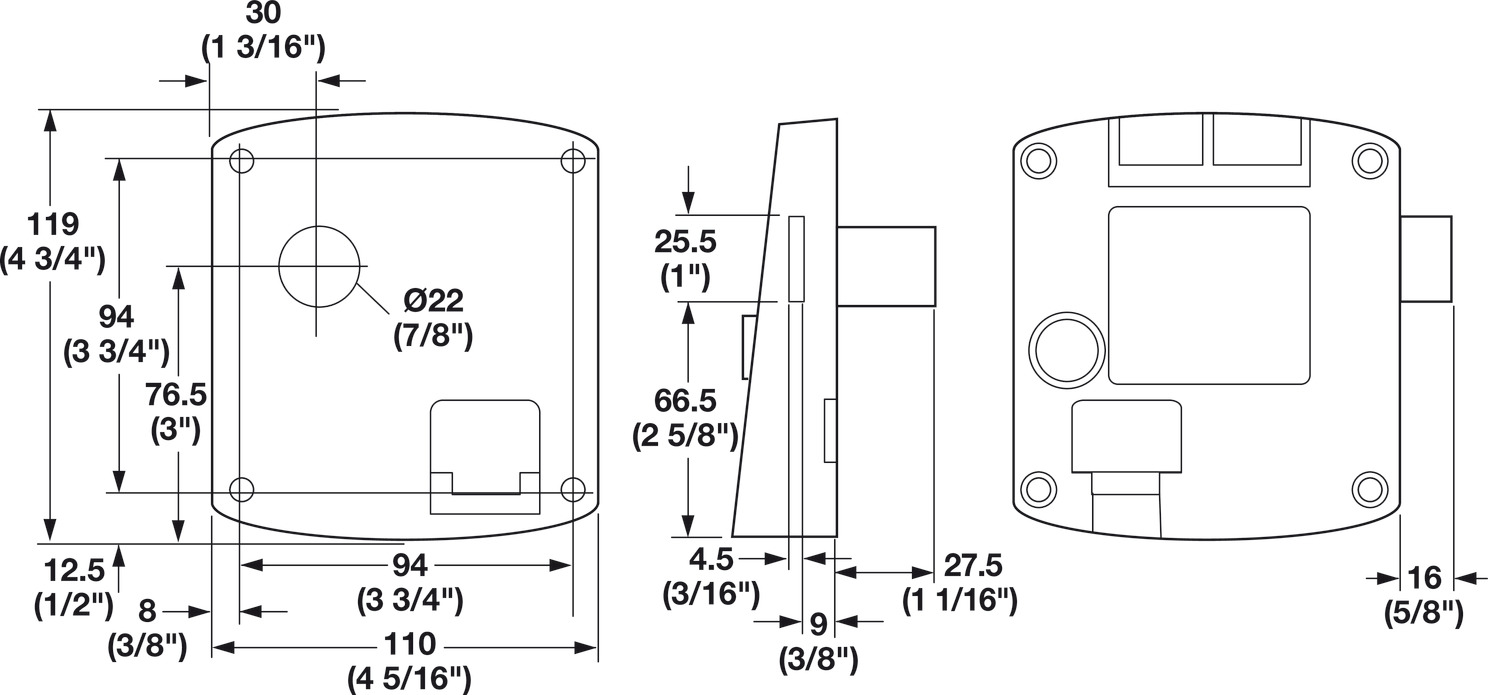

  - Dim. (L x W x H) : 110 x 57.5 x 119 mm

  - Backset (mm) : 30.00 mm

  - Installation : Right

  - Mounting : Right

  - Model series : 800 - Coin Return

  - Length (inch) : 4 5/16"

  - Width (inch) : 2 1/4"

  - Height (inch) : 4 3/4"

  - For door thickness min. : 1/2"

  - For door thickness max. : 1"

  - For cabinet width : Min: 5 1/2"

  - Temperature min. : 32.00 °F

  - Temperature max. : 140.00 °F

  - Data-driven technical data table :

  - Area of application : Fitness centersAmusement parksResortsTransportation terminals

  - Material : Plastic

  - Cylinder length : 27.00 mm

  - Cylinder Diameter: (mm) : 22.00 mm

  - Weight : 0.23 kg

  - Weight (pound) : 8 oz

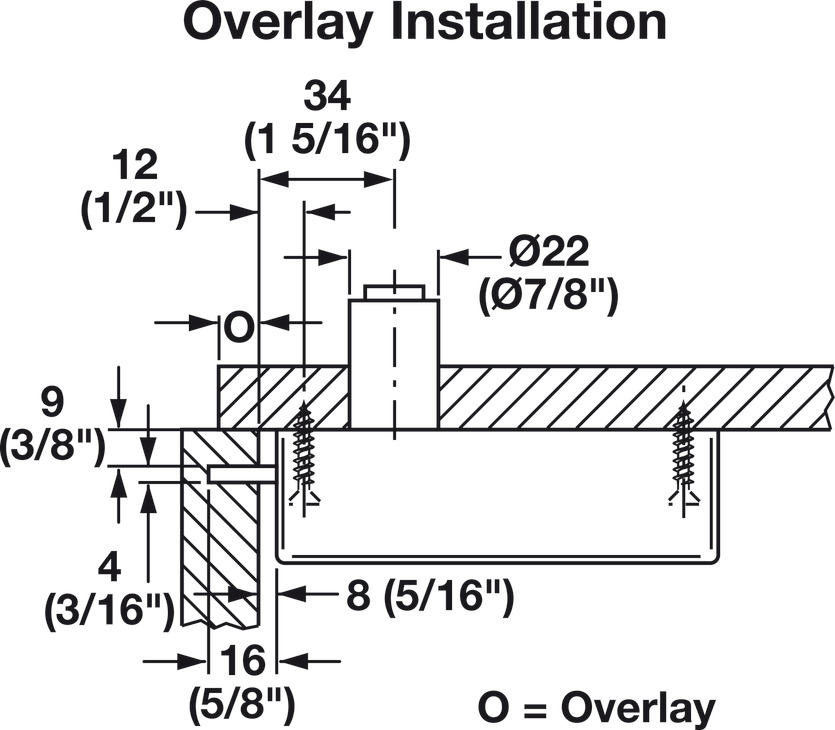

  - Installation reference : Screw length depends on door thickness.Other currency or token locks available upon request.Please contact Häfele at 1-800-423-3531 and have the following information available:“Handing” SpecificationKey Plan specifications

  - with key : Yes

  - Supplied with:

  - 4 mounting screws

  - Outside instruction decal


  Additional Information …

  Screw length depends on door thickness.Other currency or token locks available upon request.Please contact Häfele at 1-800-423-3531 and have the following information available:“Handing” SpecificationKey Plan specifications

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.66



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.65-10.65.pdf



  Hafele 231.53.817 Safe-O-Mat Series 800 Return 1 Token Rh (12X11X5 Cm)


  Product Specifications:
  Contact us for more information.
