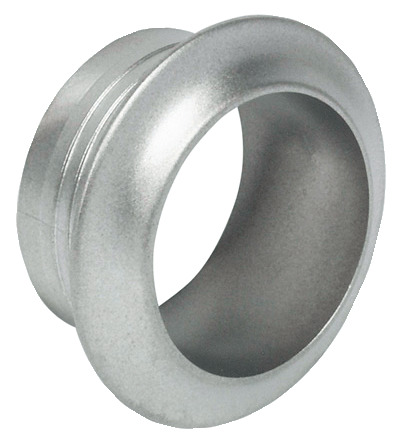

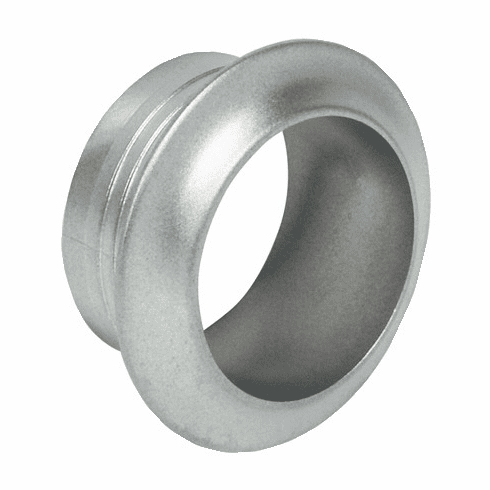

Hafele 229.03.617 Rosette, Round, for Plate Thickness 16 mm Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 229.03.617

  Product Title: Rosette, Round, for Plate Thickness 16 mm, Matt nickel

  Category: Rosette, Round, for Plate Thickness 16 mm, Matt nickel

  Item Details …

  - Meets 96 hour salt spray test

  - Proper protection should be placed over rosettes before pounding in to prevent marring

  - Shape : round

  - Material : Plastic

  - Color/finish : nickel plated, matt

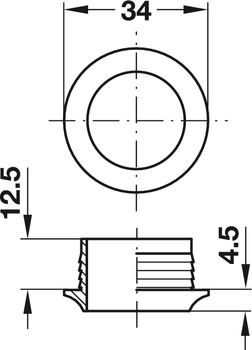

  - Rose/escutcheon Diameter: : 34.00 mm

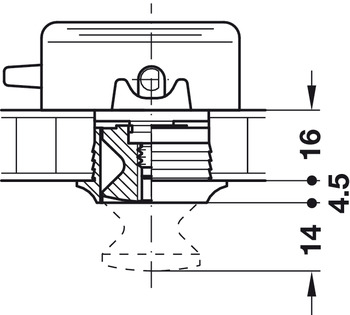

  - For panel thickness : 16 mm

  - Drill hole Diameter: : 1"

  - For door thickness min. : 5/8"

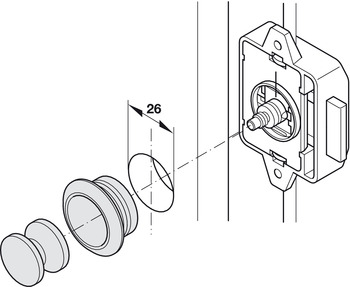

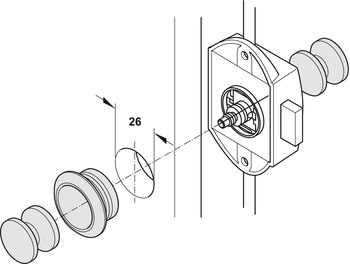

  - Area of application : For Push-Lock espagnolette locks or rim locks

  - Suitable for : Push-Lock espagnolette locks or rim locks

  - Installation : For press fitting

  - Installation reference : Meets 96 hour salt spray testProper protection should be placed over rosettes before pounding in to prevent marring

  - Order reference

  - Available from 10,000 pieces in other finishes/colour.


  Additional Information …

  (1�) drill bit

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.58



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.56-10.57.pdf

  Hafele 229.03.617, 229-03-617, 22903617, 229.03


  Specifications/Hafele Catalog - Page# FC10.60: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Push-Button Knob, for Push-Lock, Plastic (choose one):


  • Matt nickel Polished brass

    229.01.677 229.01.873

    Click to order Click to order
