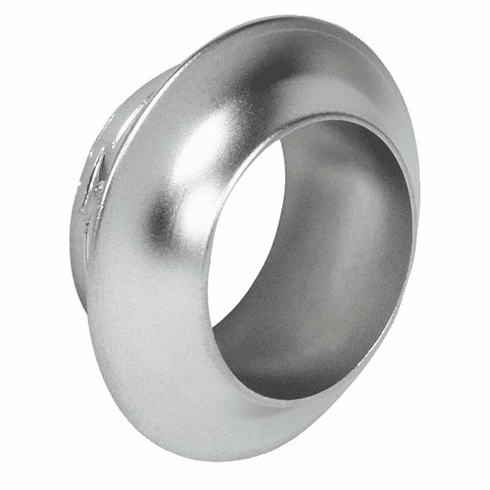

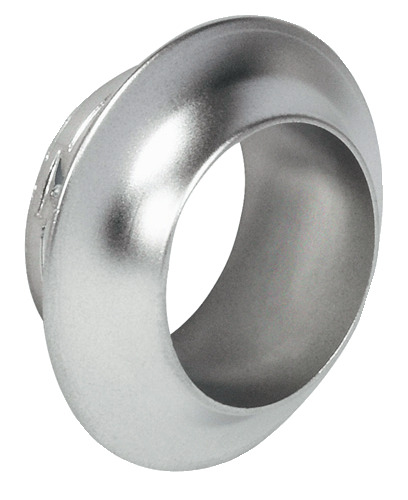

Hafele 229.03.608 Rosette, Round, for Plate Thickness 13 mm Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 229.03.608

  Product Title: Rosette, Round, for Plate Thickness 13 mm, Matt nickel

  Category: Rosette, Round, for Plate Thickness 13 mm, Matt nickel

  Item Details …

  - Meets 96 hour salt spray test

  - Proper protection should be placed over rosettes before pounding in to prevent marring

  - Shape : round

  - Material : Plastic

  - Color/finish : nickel plated, matt

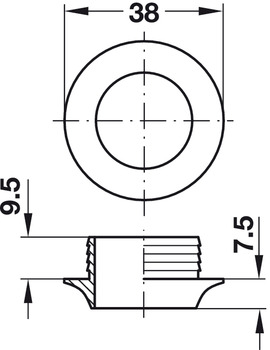

  - Rose/escutcheon Diameter: : 38.00 mm

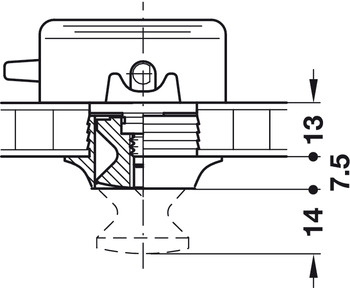

  - For panel thickness : 13 mm

  - Drill hole Diameter: : 1"

  - For door thickness min. : 1/2"

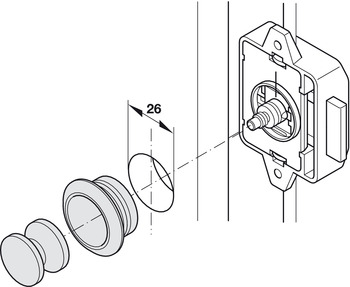

  - Area of application : For Push-Lock espagnolette locks or rim locks

  - Suitable for : Push-Lock espagnolette locks or rim locks

  - Installation : For press fitting

  - Installation reference : Meets 96 hour salt spray testProper protection should be placed over rosettes before pounding in to prevent marring

  - Order reference

  - Available from 10,000 pieces in other finishes/colour.


  Additional Information …

  (1�) drill bit
