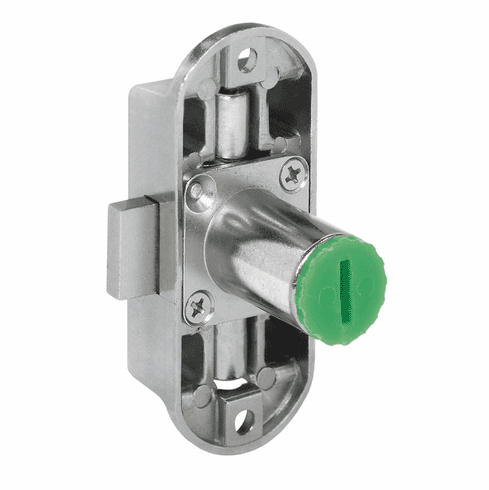

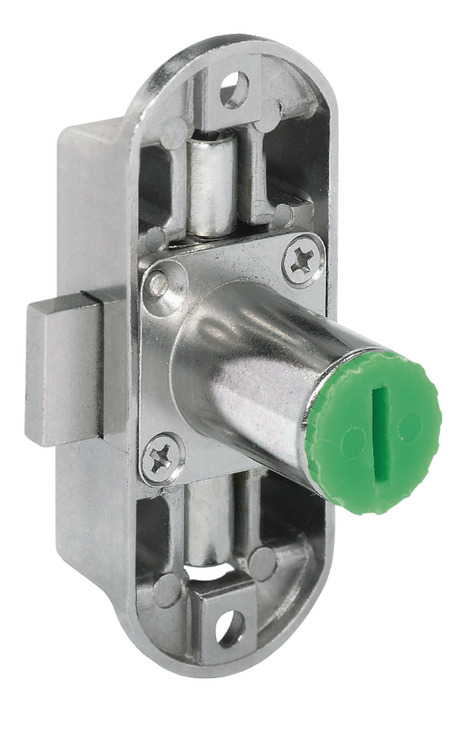

Hafele 224.64.600 Espagnolette Lock, Symo Piccolo-Nova, Backset 15 mm For combination with Symo cylinder removable core, Mounting: left hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 224.64.600

  Product Title: Espagnolette Lock, Symo Piccolo-Nova, Backset 15 mm, For combination with Symo cylinder removable core, Mounting: left hand

  Category: Espagnolette Lock, Symo Piccolo-Nova, Backset 15 mm, For combination with Symo cylinder removable core

  Item Details …

  - Material : Zinc alloy

  - Color/finish : Nickel plated

  - Installation : Screw-mounted

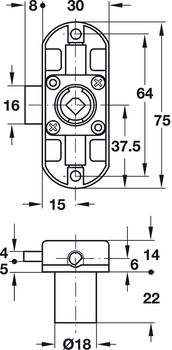

  - Backset D : 15.00 mm

  - Refinement : Nickel plated

  - Area of application : For divided profile rod Diameter: 6 mmFor cylinder cores that are inserted from the front on site

  - Cylinder housing length : 22.00 mm

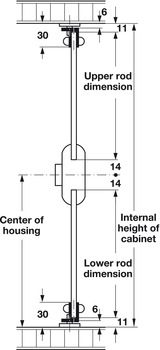

  - Installation reference : Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is � and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mmDue to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

  - with key : No

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.33



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.33-10.33.pdf

  Hafele 224.64.600, 224-64-600, 22464600, 224.64
