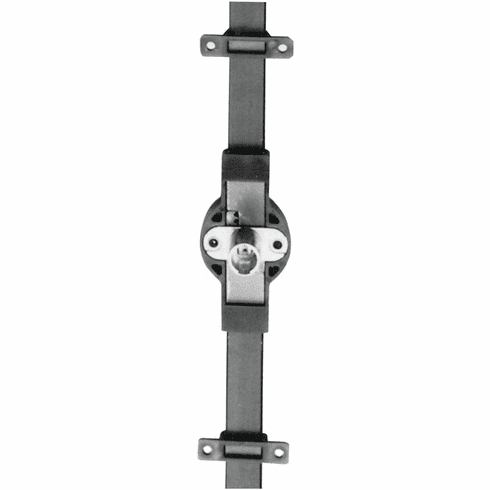

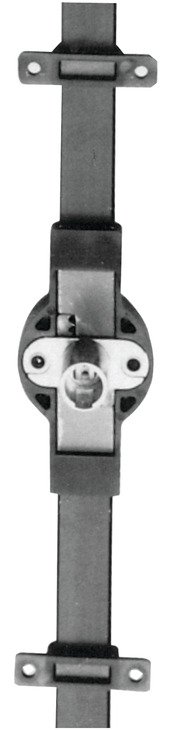

Hafele 223.63.355 Wardrobe/Overhead Storage Lock Timberline- modular removable core locking system, Vertical

Product Information

• Description

  Manufacturer: Hafele
  Item: 223.63.355

  Product Title: Wardrobe/Overhead Storage Lock, Timberline modular removable core locking system, Vertical

  Category: Wardrobe/Overhead Storage Lock, Timberline modular removable core locking system

  Item Details …

  - An economical arrangement which allows installation of the lock body in the side panel at any position

  - Material : Lock case: NylonCylinder housing: Die-cast zincBars: SteelBar retainers: Nylon

  - Color/finish : Lock case: BlackBars: BlackBar retainers: Black, Cylinder housing: unfinishedBars: Powder-coated

  - Product type : Wardrobe/Overhead Storage Lock

  - Bolt throw : 1/2"

  - Supplied with:

  - Lock body

  - 2 bars

  - 6 bar retainers

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.17

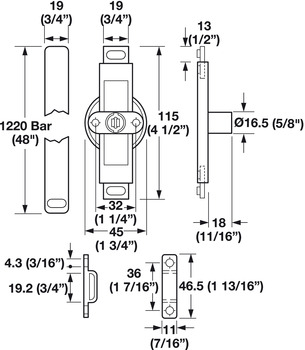

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.17-10.17.pdf

  Hafele 223.63.355, 223-63-355, 22363355, 223.63
