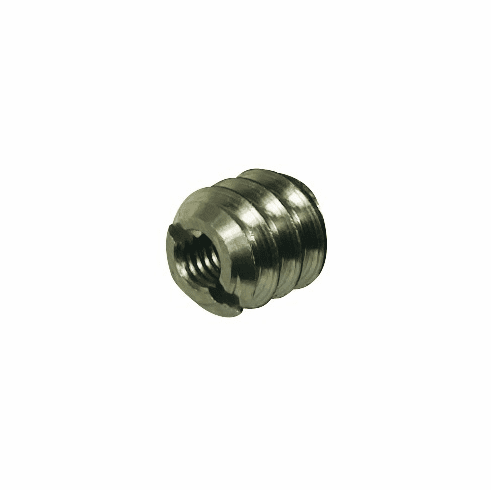

Hafele 030.00.502 Screw-In Socket, with Screwdriver Slot External thread : 18.5 mm, internal thread: M10, length: 15 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 030.00.502

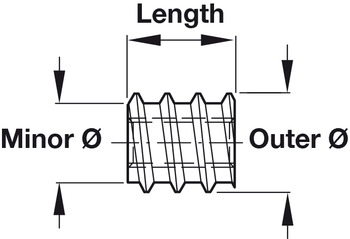

  Product Title: Screw-In Socket, with Screwdriver Slot, External thread Ø: 18.5 mm, internal thread: M10, length: 15 mm

  Category: Screw-In Socket, with Screwdriver Slot,

  Item Details …

  - Color/finish : Zinc plated

  - Material : Steel

  - Drive : Slot


  Additional Information …

  The drill hole Ø is a recommendation for chipboard, and the drill hole diameter may differ with hardwood.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.109



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.157-11.158.pdf

  Hafele 030.00.502, 030-00-502, 03000502, 030.00
