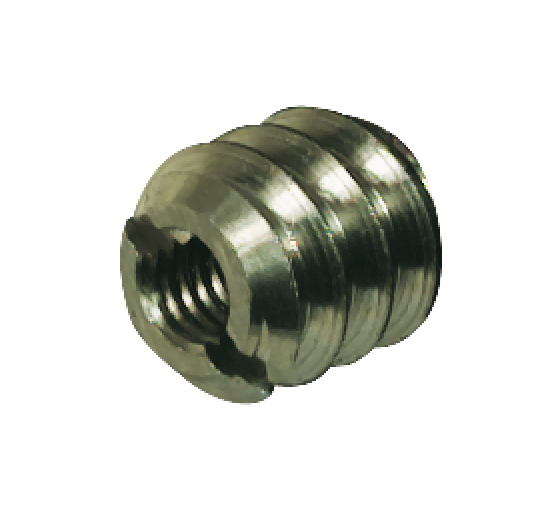

Hafele 030.00.422 Screw-In Socket, with Screwdriver Slot External thread : 16 mm, length: 18 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 030.00.422

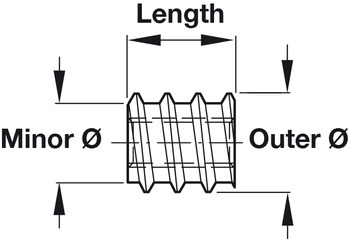

  Product Title: Screw-In Socket, with Screwdriver Slot, External thread Ø: 16 mm, length: 18 mm

  Category: Screw-In Socket, with Screwdriver Slot,

  Item Details …

  - Color/finish : Zinc plated

  - Material : Steel

  - Drive : Slot


  Additional Information …

  The drill hole Ø is a recommendation for chipboard, and the drill hole diameter may differ with hardwood.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.41



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.43-11.43.pdf

  Hafele 030.00.422, 030-00-422, 03000422, 030.00


  Specifications/Hafele Catalog - Page# FC11.45: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
