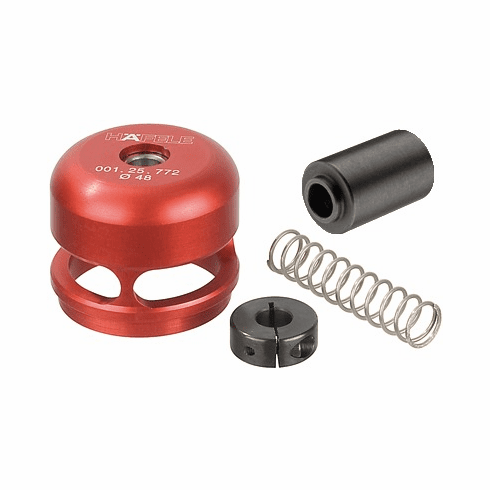

Hafele 001.25.772 Red Jig, depth gauge 48mm, anodized aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 001.25.772

  Product Title: Depth Gauge, for Red Jig, 48 mm, drill bit Ø up to 26-40 mm

  Category: Depth Gauge, for Red Jig,

  Item Details …

  - Area of application : Workshop Equipment

  - Suitable for : Häfele Red Jig drill guide

  - Material : Aluminum

  - Color/finish : Red, anodized

  - Order reference

  - If no basic components of the Häfele Red Jig drilling jig are available, the basic jig Cat. No.: 001.25.600 must also be ordered.

  - Supplied with:

  - Spring

  - Depth stop


  Additional Information …

  Order appropriate drill bit separately
