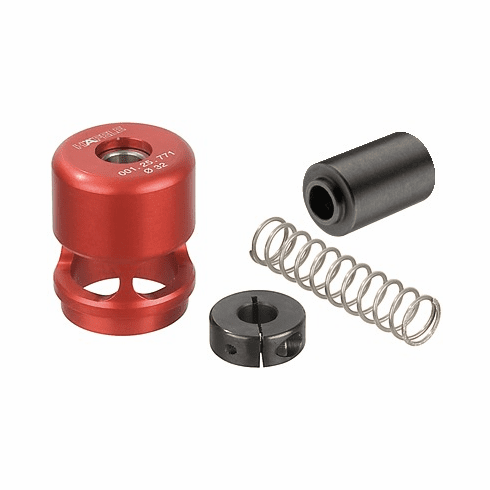

Hafele 001.25.771 Depth Gauge, for Red Jig 32 mm, drill bit dia up to 12-25 mm
Product Information
Description
Manufacturer: Hafele
Item: 001.25.771
Product Title: Depth Gauge, for Red Jig, 32 mm, drill bit Ø up to 12-25 mm
Category: Depth Gauge, for Red Jig,
Item Details …
- Area of application : Workshop Equipment
- Suitable for : Häfele Red Jig drill guide
- Material : Aluminum
- Color/finish : Red, anodized
- Order reference
- If no basic components of the Häfele Red Jig drilling jig are available, the basic jig Cat. No.: 001.25.600 must also be ordered.
- Supplied with:
- Spring
- Depth stop
Additional Information …
Order appropriate drill bit separatelyData Sheet
