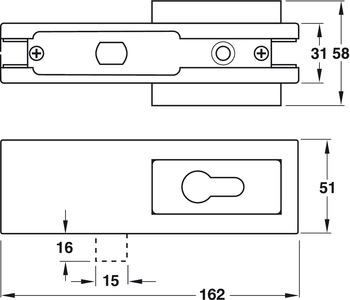

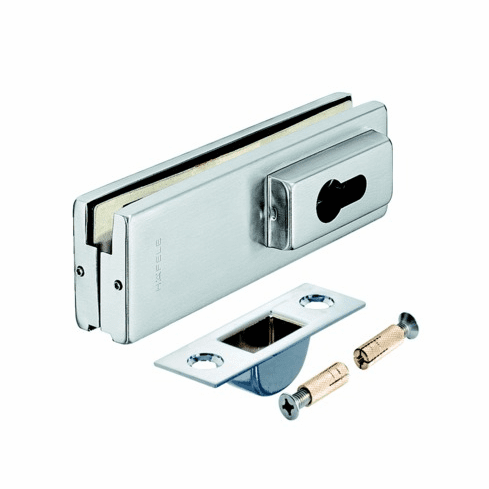

Hafele 981.00.400 Corner Door Patch Lock, for euro profile cylinder, for 10-12.7mm thick glass, matte stainless steel cover, 162 x 51mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 981.00.400

  Product Title: Corner Door Patch Lock, ?, For tempered glass doors, Matt

  Category: Corner Door Patch Lock, ?, For tempered glass doors, Matt

  Item Details …

  - Material : Stainless steel

  - Color/finish : matt

  - For glass thickness : 10?–?12 mm

  - Deadbolt throw : 1 turn

  - Mounting : For DIN left and DIN right hand use

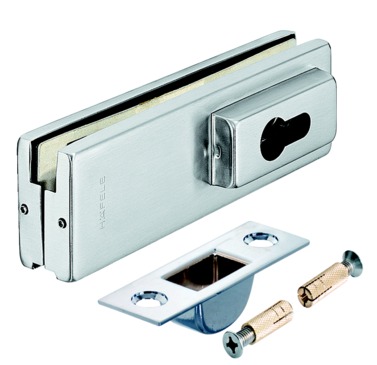

  - Supplied with:

  - 1 corner patch lock with PC aperture

  - 1 adapter plate for glass thickness 10 mm

  - 1 striking plate with fixing material

  - 1 fixing screw for profile cylinder

  - 1 hex key

• Data Sheet

  Detailed Data Sheet

• Product Resources

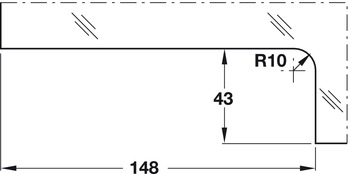

  Glass preparation details for double action doors, Startec corner patch lock



• Specifications

  Hafele 981.00.400, 981-00-400, 98100400, 981.00
