Hafele 943.30.006 Sliding Doors Type F, Hawa Aperto 60/H, set for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type F

Product Information

• Description

  Hafele 943.30.006 Sliding Doors Type F, Hawa Aperto 60/H, set
  for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type F

  Additional items required to complete installation:
  Suspension Profile ,
  90° and parallel parking area

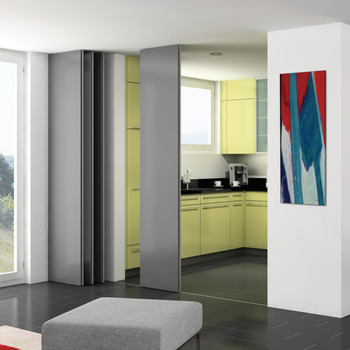

  Application : Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings
  locking of the system with one lock

  Door weight : ‰¤ (130 lbs) 60 kg

  Door width : 90° parking area: 550-950 mm, parallel parking area: 550-1,500 mm mm

  Door height : ‰¤2,600 mm

  Door thickness : 35-50 mm

  Adjustment : Vertically: (+/- 1/8") +/- 3 mm

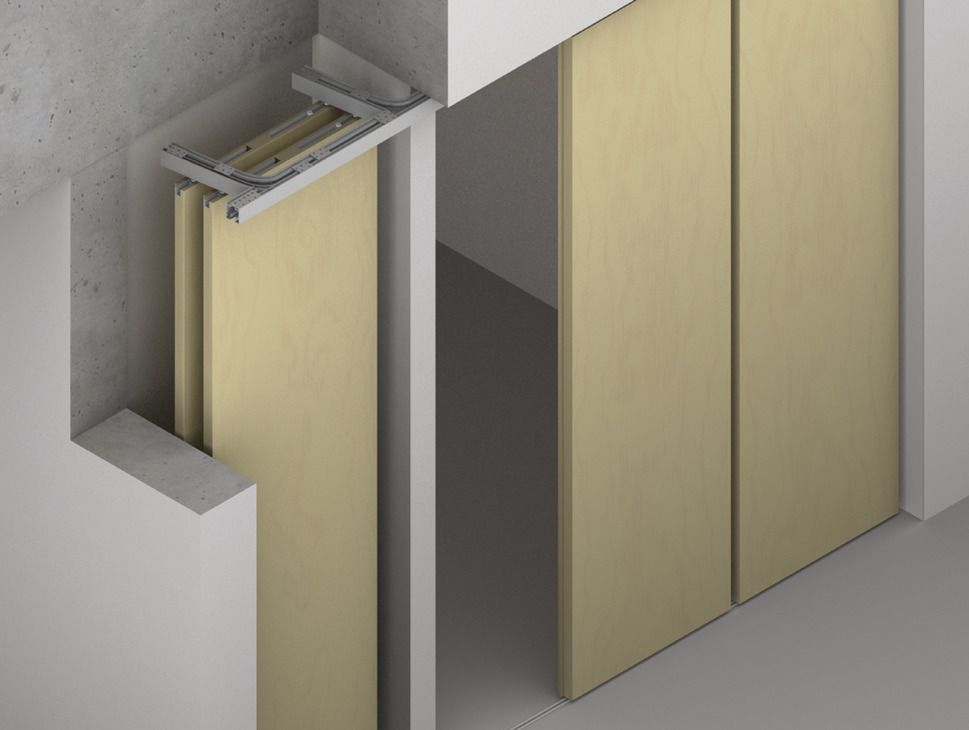

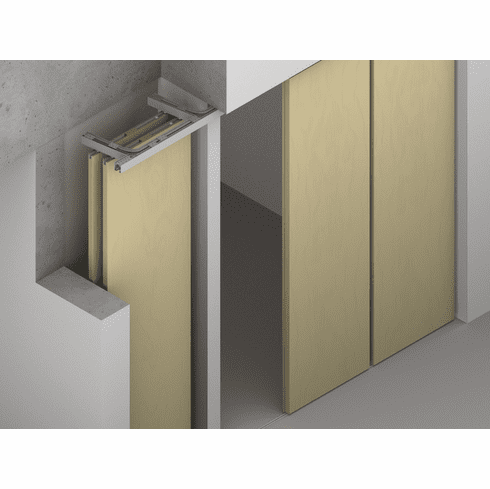

  Features : Door stackable 90° or parallel with the running direction in open position
  partial sets for sliding doors, access doors and parking areas
  with guide track, without guide track with lighter loads (optional)
  system flush in closed position
  light and steady curving run

  Installation : Ceiling installation



  Supplied with :

  2 suspension carriages

  2 Running gears

  2 Support profiles

  2 cover caps

  1 single bolt lock with square/hexagonal nut and guide pin



  Suspension Carriage, with Integrated Mounting Block and M8 Screw

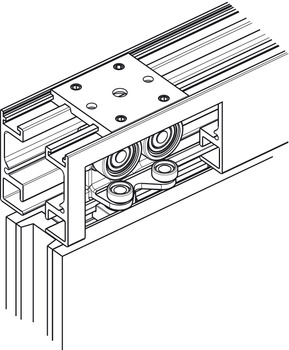

  Running Gear, with M8 Screw, with 2 Rollers
  End cap, for Carrier Profile, 20 x 25 mm

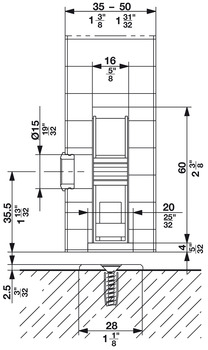

  Floor Guide , with Mounting Block
  Single Bolt Lock, with Square/Hexagonal Socket, 9 mm (11/32") Bolt
  Single Bolt Lock, for 17 mm (11/16") Profile Cylinder, 9 mm (11/32") Bolt
  Single Bolt Lock, with Square/Hexagonal Socket, 9 mm (11/32") Bolt
  Single Bolt Lock, for 17 mm (11/16") Profile Cylinder, 9 mm (11/32") Bolt
  Stike Plate, 9 (11/32") Bolt


• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.170-1.175.pdf

  Hafele 943.30.006 HAWA Aperto 60/H sliding door set, type F, with sing


  • Hardware > Hardware Accessories
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 943.30.006
  • Condition: new
