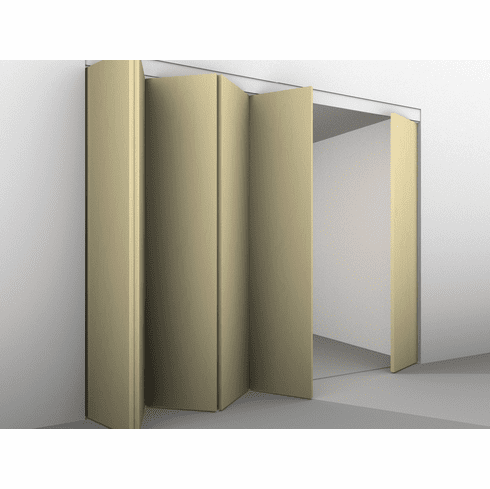

Hafele 943.29.010 Folding wall fitting, Hawa Variofold 80/H Basic Set with Lower Pivot Guide Channel
Product Information
Description
Manufacturer: Hafele
Item: 943.29.010
Product Title: Sliding door fitting, Hawa Variofold 80 H, for wooden folding sliding doors, for door weights up to 80 kg, for door widths 500-900 mm, with height adjustment, Basic Set with Lower Pivot Guide Channel
Category: Sliding door fitting, Hawa Variofold 80 H, for wooden folding sliding doors, for door weights up to 80 kg, for door widths 500-900 mm, with height adjustment
Item Details …

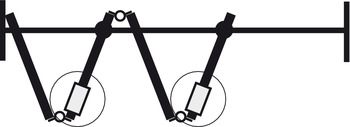

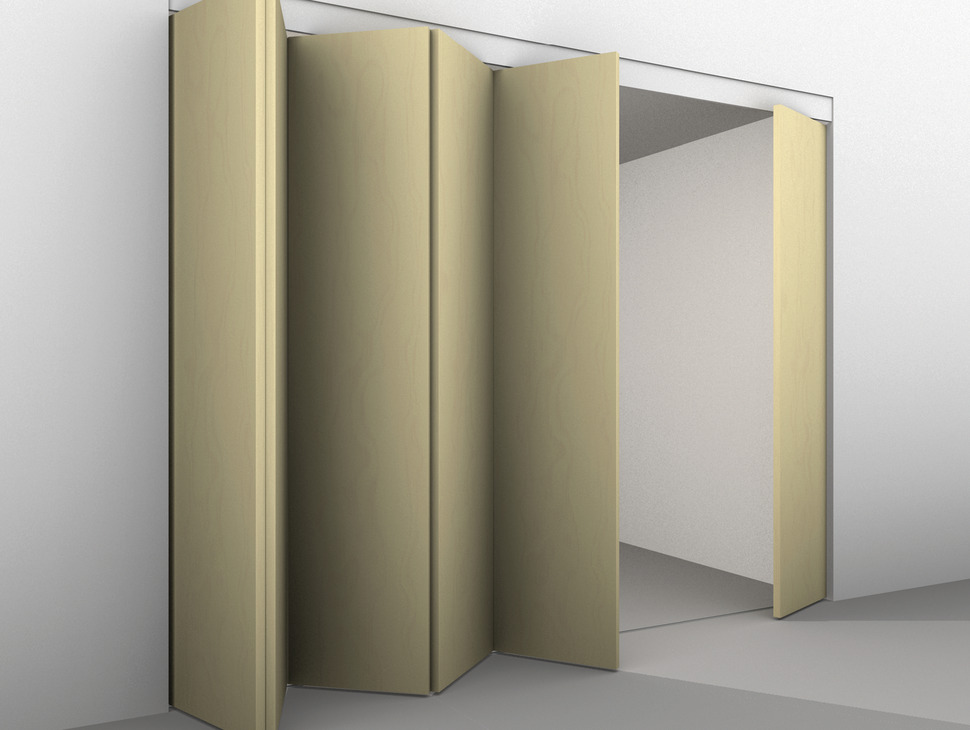

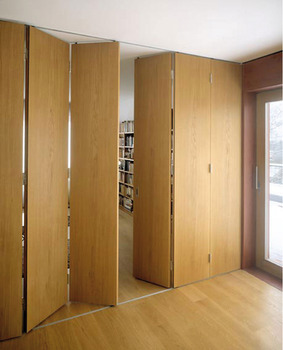

- Folding/sliding hardware for wall partitions
- For 2 – 7 folding panels

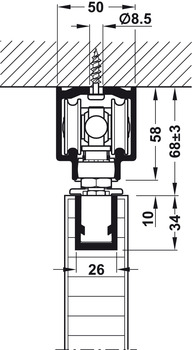

- Upper track made out of anodized aluminum

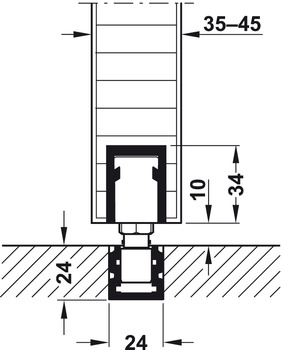

- Lower guide channel made out of anodized aluminum
- Dual running gear with ball bearings
- Minimal space required in stacking area
- Extremely quiet and smooth operation
- Spring : Corner suspension
- For door thickness min. : 1 3/8”
- For door width (inches) : Min: 19 11/16 - 35 7/16"
- Load bearing capacity : For Panel: 176 lbs.
- Width (inch) : Panel: 19 11/16” - 35 7/16”
- For door material : wood
- Number of doors per system max. : >4
- For door height : ?3,500 mm
- For door thickness : 35?–?45 mm
- For door weight : ?80 kg
- For door width : 500?–?900 mm
- System width 1-sided : 6.00 m
- System width 2-sided : 12.00 m
- Running system : Concealed in track
- Controller installation options : Ceiling installation
- Adjustment facility : Height adjustment: ±3 mm, Height adjustable ± 3 mm (±1/8”)
- Version : clear threshold guide,Hinge with heavy duty bearings
- Support flange connection : brackets
- Material/finish : AluminiumPlastic

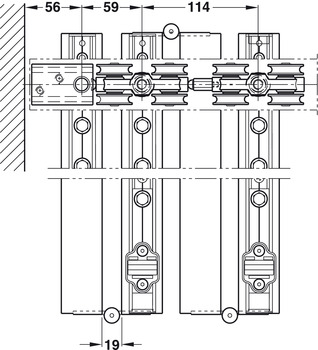

- Supplied with:
- 1 top pivot bearing
- 1 folding/access door catch, adjustable
- 1 running gear with support carriage and screw M10
- 5 support profiles, pre-drilled
- 1 thrust bearing for guide track, with follower
- 1 guide piece for guide track with zero clearance
- 5 cover caps for support profile
- 1 height adjustment spanner
- 2 spanner for suspension carriage
Additional Information …
Bottom guide tracks must be used for Hawa Variofold systems. However, for systems with 2 doors on both sides and up to a system width of max. 3.6 m the bottom guide track is not required.Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.158-1.160.pdf
Hafele 943.29.010 Fitting Set Variofold 80/H- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,500-3000
- Brand: Hafele
- Part#: 943.29.010
- Condition: new
Brand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Upper Track, Pre-drilled (choose one):For Hawa Variofold and Centerfold 80/H, 6 m (19' 8 1/4") 943.27.960 Click to order
Guide Channel, 24 x 24 mm (15/16" x 15/16") (choose one):For Hawa Junior, length: 6 m (19' 8 1/4") 940.81.600 Click to order
Optional Accessories:- Bar Bolt Lock, Hawa Doorfix
- Heavy Duty Ball Bearing Hinge, Stainless steel
- Deadbolt Lock, For Hawa Variofold and Centerfold 80/H
- Bar Bolt, with square/hexagonal nut
- Thumbturn, with square pin
- Slip-fit Rose, For Hawa Variofold and Centerfold 80/H
- Dust-Proof Strike, With Spring-Loaded Cover
- Rosette, For Dust-proof Strike 946.23.920
- Stike Plate, With Oblong Hole
- Socket Key, for Bolt Lock
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
