Hafele 942.42.000 Sliding Door Hardware, Hawa Super 500/A, set Hawa Super 500/A

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.42.000

  Product Title: Sliding Door Hardware, Hawa Super 500/A, set, Hawa Super 500/A, without running track

  Category: Sliding Door Hardware, Hawa Super 500/A, set, Hawa Super 500/A, without running track

  Item Details …

  - Robust but easy running

  - Vertically adjustable

  - Extremely resistant to wear and tear

  - Suspension with carrier bracket

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 500 A

  - For door weight : ?500 kg

  - Controller installation options : Ceiling installation, Wall mounting

  - Adjustment facility : Height adjustment: -8?–?12 mm, Height +12/-8 mm

  - For door thickness min. : 1 3/8"

  - Load bearing capacity : 1100 lbs.

  - Area of application : For single and bypassing sliding wood doors

  - Suitable for : Fire protection sliding doors

  - Running position : Top

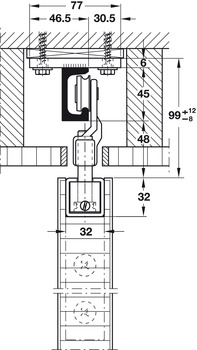

  - Installation : Suspension with recessed suspension bracket

  - Door processing : With recess

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears

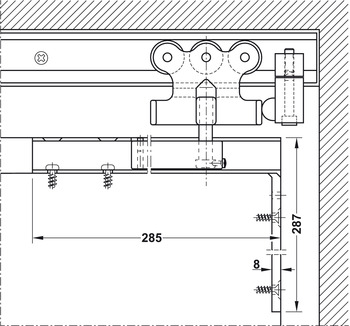

  - 2 suspension brackets with support carriage and M12 hanger bolt

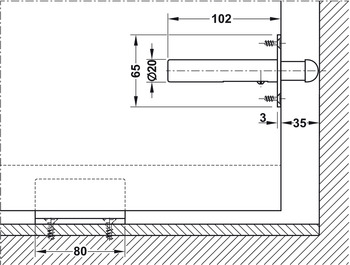

  - 2 spring buffers for recess mounting in door leaf

  - 1 floor guide

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.141



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.90-1.91.pdf

  Hafele 942.42.000 HAWA Super 500/A Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 942.42.000
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Length: 6 m (19’ 8 1/4”) (choose one):


  • for Hawa Super, Wall-mounted

    942.42.601

    Click to order



  Upper Track, Length: 6 m (19’ 8 1/4”) (choose one):


  • for Hawa Super, Ceiling-mounted, with Mounting Flanges

    942.43.601

    Click to order



  Optional Accessories:



  • Track End Stopper, for Upper Track
  • Cover Plate, for Suspension Brackets
  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Floor Guide, Hawa-Confort 120, 1-piece
