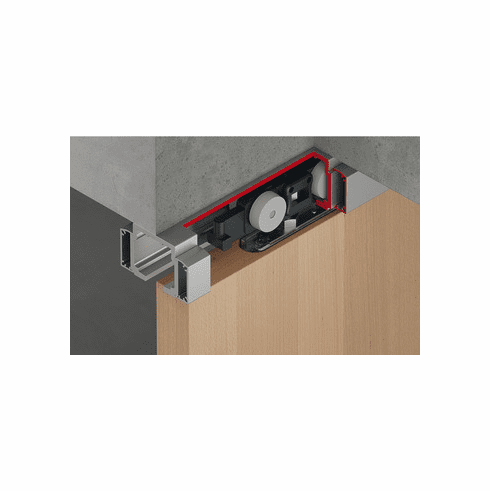

Hafele 942.35.003 Sliding Door Hardware, Slido Classic 240-O, set for 1-leaf sliding doors, without running track, Classic 240-0, version A, without soft and self closing mechanism

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.35.003

  Product Title: Sliding Door Hardware, Slido Classic 240-O, set, For 1 and 2 sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 240 kg, without soft and self closing mechanism

  Category: Sliding Door Hardware, Slido Classic 240-O, set, For 1 and 2 sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 240 kg, without soft and self closing mechanism

  Item Details …

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 240-O

  - Soft closing mechanism : without soft and self closing mechanism

  - For door weight : ?240 kg

  - Controller installation options : Ceiling installation, Wall mounting

  - Adjustment facility : Door height adjustable

  - Door weight max. : 530 lbs.

  - Area of application : For 1 and 2 sliding wood doors

  - Running position : Top

  - Adjustment facility : height adjustment

  - Installation : Positive-fit clamp connection (without tools)

  - Door processing : for screw fixing

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears (incl. flange clip left and right)

  - 1 clear threshold floor guide

  - 2 track buffer with retaining spring


  Additional Information …

  No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido Classic 240-P and 240-O

  Slido Classic 240 P Mounting Instructions

  TCH_Architectural_Hardware_2022|Page 1.47



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.24-1.25.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Running track, For Slido D-Line11, pre-drilled (choose one):


  • Aluminum, silver colored anodized, length: 3,000 mm Clear Anodized Finish, 6 m Length

    941.62.603 941.62.606

    Click to order Click to order



  Guide Track, Bottom (choose one):


  • for Häfele Slido D-Line11, Length 1000 mm (1 m) for Häfele Slido D-Line11, Length 1,500 mm (1.5m) for Häfele Slido D-Line11, Length 2000 mm (2m)

    940.42.050 940.42.051 940.42.052

    Click to order Click to order Click to order



  Optional Accessories:



  • End cap set, For running track and panel
  • Clip-on panel, For running track, height 50 mm
  • End cap set, For Slido D-Line11, height 50 mm
  • Mounting bracket, for Slido D-Line11
  • Clip-on panel, For running track, height 33 mm
  • End cap set, For Clip Panel, Height 33 mm
  • Floor Guide, Slido Classic 40-P-120-P
  • Bottom guide, Plastic
  • Floor Guide Roller, Ø10 (3/8”)
  • Guide track, For floor guide roller
  • Clip-on panel, for running track
  • Bar Bolt Lock, Hawa Doorfix
  • Upper Track Cleaning Tool, For Hawa Porta, Divido
  • Sealing Profile, Drilled
