Product Information
Description

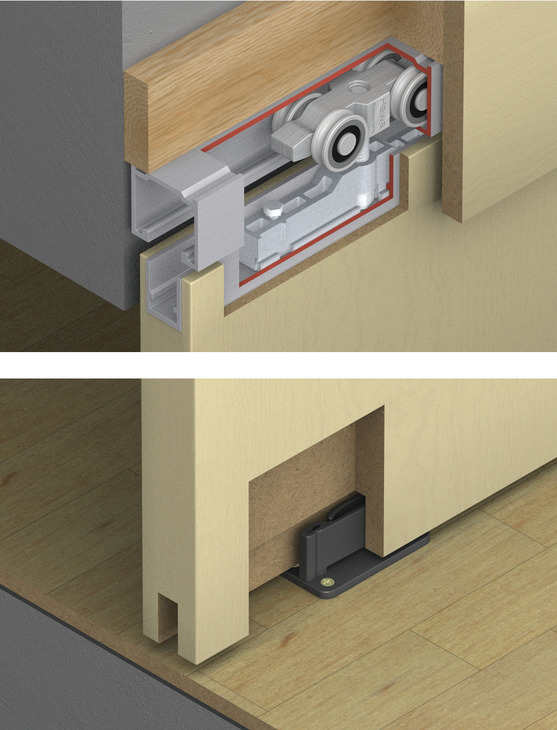

Hafele 942.30.001 Sliding Door Hardware, HAWA Silenta 150/B, set
HAWA Silenta 150/B
Additional items required to complete installation:
Upper Track, Pre-drilled, Aluminum
Guide Rail, Plastic, 3 m (9 10 1/8)Load bearing capacity : (330 lbs) 150 kg For door thickness : min. (1 3/8") 35 mm Application : For 1-leaf and 2-leaf sliding wood doors Supplied with : 2 Running gears
2 base profiles with suspension carriage
2 cover caps for support profile
1 track buffer
1 rubber wall buffer
1 floor guide
1 locking wrench
Optional items:
Mortise locks for sliding doors
Assembly Wedge, for Doors Running in the CeilingSpecifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.76-1.77.pdf
Hafele 942.30.001 HAWA Silenta 150/B Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,500-3000
- Brand: Hafele
- Part#: 942.30.001
- Condition: new
Catalog Pages
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetInstallation Manuals
Click: :Installation instructions and
Cannot find your product? click: Help!. Our product experts will assist you.
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
