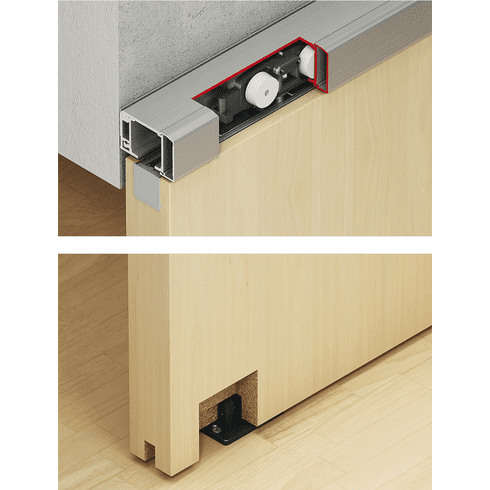

Hafele 941.25.007 Sliding Door Hardware, Slido, Classic 120-I, set for 1 sliding door without upper track, Soft and self closing mechanism on both sides, door weight: 120 kg
Product Information
Description
Hafele 941.25.007 Sliding Door Hardware, Slido, Classic 120-I, set
for 1 sliding door without upper track, Soft and self closing mechanism on both sides, door weight: 120 kg
Additional items required to complete installation:
Single Running Track, Pre-drilled, W x H: 31 x 33 mm
Double running track, Pre-drilled, W x H: 70 x 33 mm
Double Running Track, Pre-Drilled, W x H: 81 x 33 mm
Single running track, For door weight 40-120 kg
Mounting rail, Pre-drilled, width 19 mm
Mounting rail, Pre-drilled, width 8 mmSuitable for : For wooden doors Application : For 1-leaf and 2-leaf sliding doors Adjustment : Door height adjustable ±3 mm Installation : Wall mounting and ceiling installation
suspension with integrated support flangeDoor weight : ‰¤120 kg For door thickness : Min: (1 1/4") 32 mm Supplied with : 2 running gears with support flange and soft and self closing mechanism
2 support profiles with cover cap
1 clear threshold floor guide
2 release devices with stopper for soft and self closing mechanism
Optional items:
Door seals for sliding doors
Track stopper
Additional set for stacking
Mounting bracket, for Hafele Slido Classic
Retaining Bolts and Screws, For running track and mounting rail
Clip panel, For running track, for integration in suspended ceilings
Clip panel, For running track, height 33 mm
End cap set, For running track
Guide Track, Bottom
Floor Guide, Slido Classic 40-P-120-PSpecifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.6-1.9.pdf
Hafele 941.25.007 Slido Classic 120-I Fitting Set, version E- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,50-500
- Brand: Hafele
- Part#: 941.25.007
- Condition: new
Installation Manuals
Click: :Installation instructions for
Cannot find your product? click: Help!. Our product experts will assist you.
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
