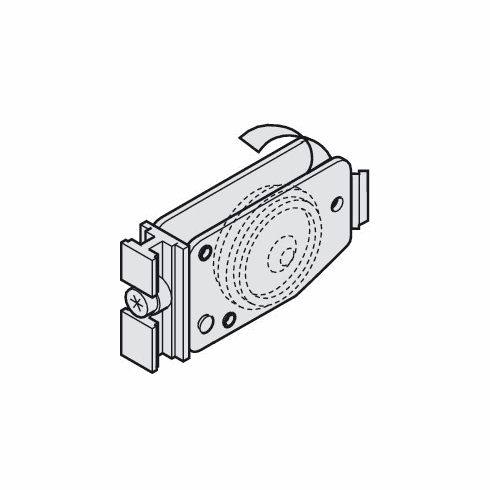

Hafele 941.12.030 Spring Loaded Running Gear, with Anti-derail Device, Single Wheel Used as Lower Guide, Non-weight Bearing, EKU Divido

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.12.030

  Product Title: Spring Loaded Running Gear, with Anti-derail Device, Single Wheel, Used as Lower Guide, Non-weight Bearing, Hawa Divido

  Category: Spring Loaded Running Gear, with Anti-derail Device, Single Wheel, Used as Lower Guide, Non-weight Bearing, Hawa Divido

  Item Details …

  - For sliding door systems 100 H and 100 HM

  - Suitable as an additional floor guide option, especially for doors wider than 900 cm (35 7/16”)

  - Includes a spring-loaded anti-derail function which prevents unintentional disengagement through lifting or lateral shifting of doors

  - Single wheel used as lower guide, non-weight bearing

  - Note: 2 pcs are required per sliding door

  - Includes a spring-loaded anti-derail function which prevents unintentional disengagement through lifting or lateral shifting of doors

  - Length : 65 mm

  - Area of application : As additional floor guide

  - Version : 1 rollers

  - Height : 37.00 mm

  - Height adjustment : -4?–?15 mm

  - Installation : Hawa Divido 100 H

  - Order reference

  - Please order 2 floor guides, 2 adapters and chipboard screws with countersunk head 4 x 60 mm for each Hawa Divido 100 H or Hawa Divido 100 HM sliding door.


  Additional Information …

  recommended as additional floor guide for door width of >900 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.71



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.47-1.47.pdf

  Hafele 941.12.030 Lower Guide, with single wheel


  • Hardware > Hardware Accessories
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 941.12.030
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Adapter, for Running Gear, with Mounting Screws (choose one):


  • For Hawa Divido

    941.12.031

    Click to order



  Lower Running Track, Single, Recessed, 13 x 8 (33/64" x 5/16") (choose one):


  • For Hawa Divido, Length: 2.5 m (8' 2 7/16") For Hawa Divido, Length: 3.5 m (11' 5 13/16") For Hawa Divido, Length: 6 m (19' 8 1/4")

    941.13.825 941.13.835 941.13.860

    Click to order Click to order Click to order



  Lower Running Track, Single, Surface-mounted, 38 x 8 mm (1 1/2" x 5/16") (choose one):


  • For Hawa Divido, Length: 3.5 m (11' 5 13/16") For Hawa Divido, Length: 6 m (19' 8 1/4")

    941.13.735 941.13.760

    Click to order Click to order



  Optional Accessories:



  • Mounting Profile, for Single Lower Running Track, Recessed, 51 x 10 (2" x 3/8")
  • Clip Profile, For mounting rail and double running track, 25 x 6 mm (1 x 1/4")
