Hafele 941.07.185 Hollow Stainless Steel Track Set, Antra for Wood Doors, 2.1 m Length

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.07.185

  Product Title: Hollow Stainless Steel Track Set, Antra, for Wood Doors, 2.1 m Length

  Category: Hollow Stainless Steel Track Set, Antra, for Wood Doors, 2.1 m Length

  Item Details …

  - Smooth quiet operation

  - Maintenance-free

  - Simple installation

  - Stainless steel components

  - Number of doors : 1.00

  - For door material : wood

  - For door weight : ?100 kg

  - For door width : ?1,000 mm

  - Running track length : 2,100.00 mm

  - Material/finish : Stainless steel

  - Controller installation options : Wall mounting

  - For door thickness : 35?–?45 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height: (1/8") ±3 mm

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : 220 lbs.

  - Length (inch) : 6’ 10 11/16"

  - Area of application : For 1 sliding wood door

  - Running position : Top

  - Order reference

  - Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.

  - Supplied with:

  - Upper track rod

  - 4 - 5 wall attachments

  - 2 door stoppers

  - 2 running gears

  - Lower guide

  - Hex key

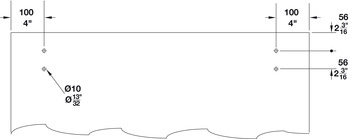

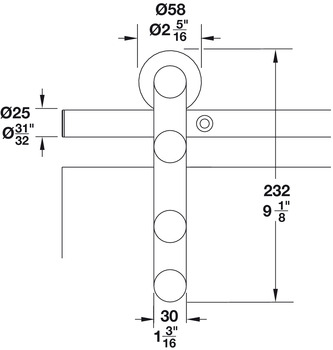

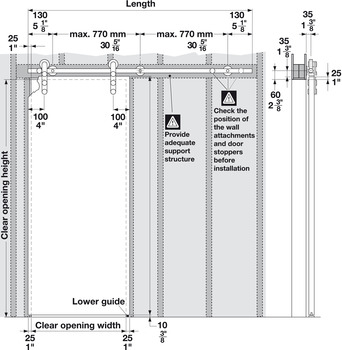

  - Installation plan included in fitting set, also available for planning and execution upon request

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.114-1.115.pdf

  Hafele 941.07.185 Antra I Wood Set with 82 11/16" long upper track, st


  • Hardware > Hardware Accessories
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 941.07.185
  • Condition: new
