Hafele 941.00.116 Sliding Door Hardware, Eku Porta 60/100 HMD, set for 1-leaf wooden sliding doors, Door weights ‰¤100 kg (220 lbs), version B, with 2 m upper track and clip panel

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.00.116

  Product Title: Sliding Door Hardware, Hawa Porta 60/100 HMD, Set with running track, for 1-leaf wooden sliding doors, With clip-on fascia, length: 2000 mm, Door weight ?100 kg, aluminum, silver colored

  Category: Sliding Door Hardware, Hawa Porta 60/100 HMD, Set with running track, for 1-leaf wooden sliding doors

  Item Details …

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - For door width : ?1,600 mm

  - Running track length : 2,000.00 mm

  - Material/finish : Silver colored, anodized

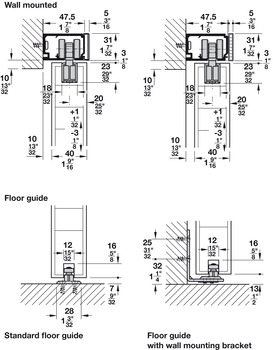

  - Controller installation options : Wall mounting

  - For door thickness : 30?–?40 mm

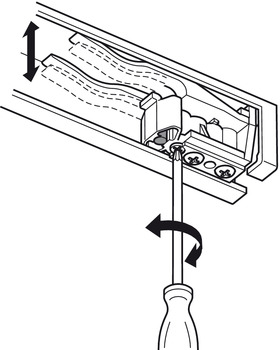

  - Adjustment facility : Height adjustment: -3?–?1 mm, Door height adjustable +1/–3 mm (+ 1/32/-1/8")

  - Door width max. : ? 5' 3"

  - Area of application : For 1 doors

  - For door height : ?2,700 mm

  - Running position : Top

  - Door processing : With recess

  - Order reference

  - Please order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 1 Porta 100 HM/HMD set

  - 1 securing bracket set for wooden and aluminium panels

  - 1 end cap set

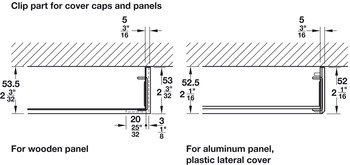

  - 5 clips for wooden and aluminium panels

  - 1 track cleaner

  - 1 running track 2000 mm

  - 1 clip-on panel 2000 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.59



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.36-1.37.pdf

  Hafele 941.00.116 EKU-Porta 100 HMD Fitting Set, includes 2.0 meters l


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 941.00.116
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Clip-on panel, 31 mm
  • Safety clip set, For wooden and aluminum panels, prevents the track from being bent apart
  • End cap set, with safety clip for aluminum panel

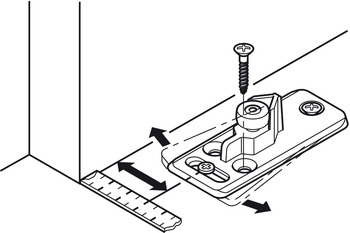

  • Bottom guide, adjustable

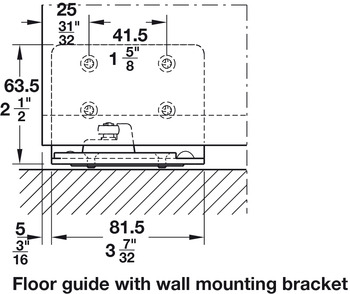

  • Bottom guide, With wall mounting bracket
  • Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer
  • Sealing Profile, Drilled
  • Upper Track Cleaning Tool, For Hawa Porta, Divido
  • Supplementary Sets, For Hawa Divido 100 H/100 HM, stacking
  • Soft Closer, For Hawa Porta, Hawa Divido 60/100
  • Running track, Pre-drilled, 47.5 x 31 mm (W x H)
