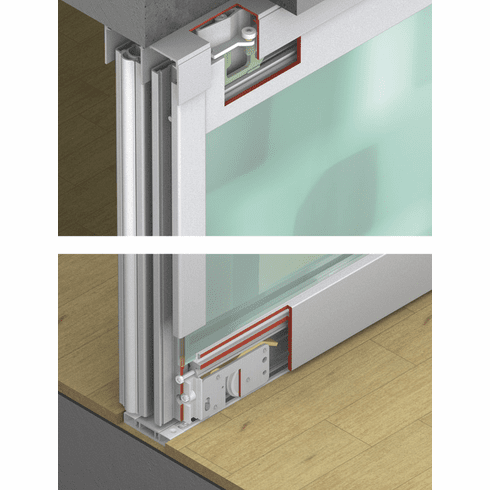

Hafele 940.92.000 Sliding Door Hardware, Hawa Divido 80 GR, set

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.92.000

  Product Title: Sliding Door Hardware, Hawa Divido 80 GR, set, Top Hung System

  Category: ,

  Item Details …

  - Running gears with special spring loaded anti-derail device that eliminates accidental displacement of sliding doors

  - Allows for wood and glass sliding door combinations

  - Area of application : For 1 sliding door without the lower running tracks and upper guide channels use 1 set

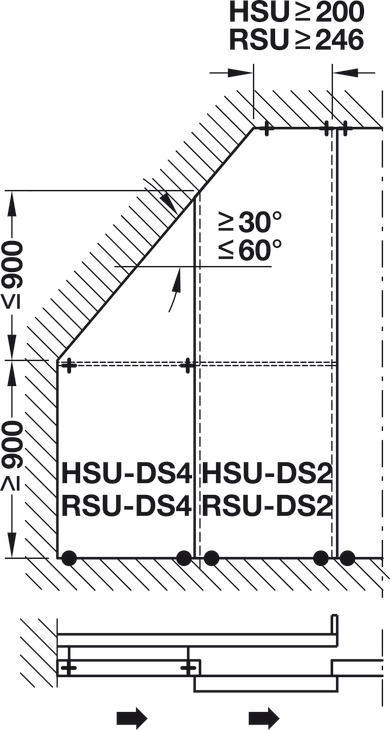

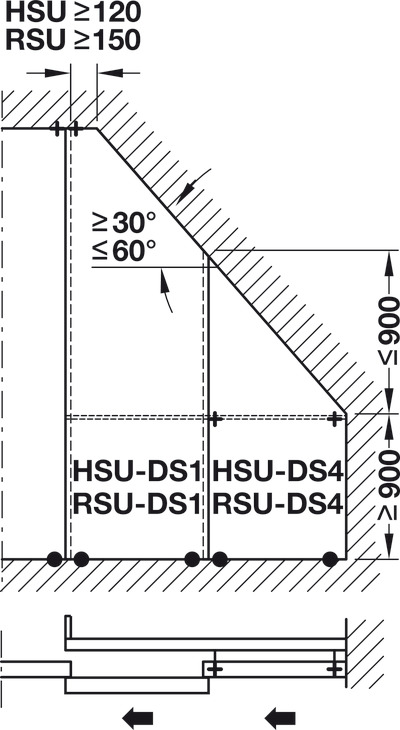

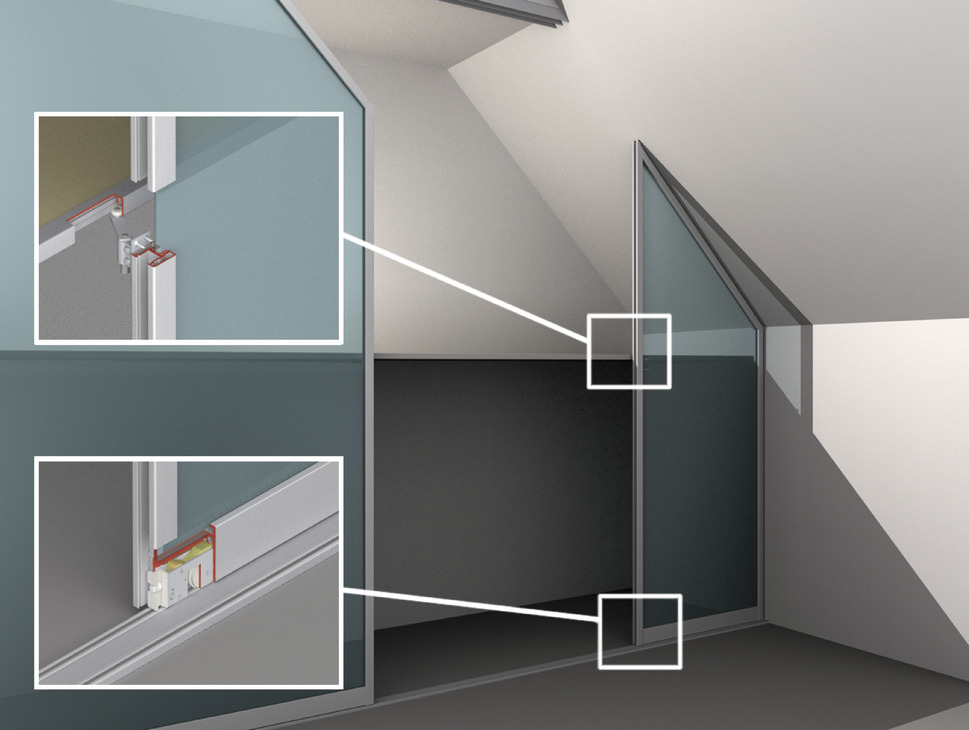

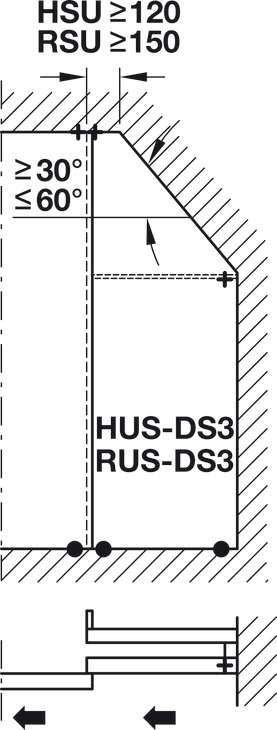

  - Suitable for : Roof slopes

  - For door height : ≤2,750 mm

  - Supplied with:

  - 2 running gears

  - 2 guide carriages

  - 2 intermediate stops and stop buffers

  - 2 guide track stoppers with retaining spring

  - 2 track end pieces for single running track (recessed installation)

  - 1 set of fixing screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.275



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lower Running Track, Single, Surface-mounted, 38 x 8 mm (1 1/2" x 5/16") (choose one):


  • For Hawa Divido, Length: 3.5 m (11' 5 13/16") For Hawa Divido, Length: 6 m (19' 8 1/4")

    941.13.735 941.13.760

    Click to order Click to order



  Lower Running Track, Single, Recessed, 13 x 8 (33/64" x 5/16") (choose one):


  • For Hawa Divido, Length: 2.5 m (8' 2 7/16") For Hawa Divido, Length: 3.5 m (11' 5 13/16") For Hawa Divido, Length: 6 m (19' 8 1/4")

    941.13.825 941.13.835 941.13.860

    Click to order Click to order Click to order



  Mounting Profile, for Single Lower Running Track, Recessed, 51 x 10 (2" x 3/8") (choose one):


  • for Hawa Divido, Length: 3.5 m (11' 5 13/16")

    941.13.135

    Click to order
