Hafele 940.84.012 Sliding Door Hardware, HAWA Junior 80/M, Set for single glass door

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.84.012

  Product Title: Sliding Door Hardware, HAWA Junior 80/M, Set, for single glass door

  Category: Sliding Door Hardware, HAWA Junior 80/M, Set, for single glass door

  Item Details …

  - Smooth quiet operation

  - Track stop with adjustable retention spring

  - Vertical and lateral adjustment

  - Steel suspension for welding or bolting

  - For internal or external use

  - Number of doors per system max. : 2

  - Number of doors : 1.00

  - For door material : wood, glass

  - For door weight : ?80 kg

  - Material/finish : Aluminium

  - Load bearing capacity : 176 lbs.

  - Area of application : For 1 and 2 sliding glass doors

  - Suitable for : Protected outdoor area

  - Running position : Top

  - Supplied with:

  - 2 x running gear

  - 2 x suspension plate

  - 2 x track stopper

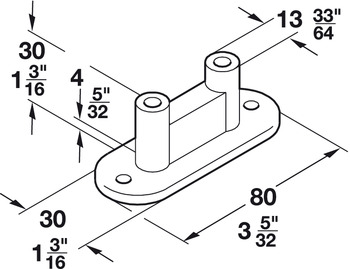

  - 1 x lower guide

  - 1 x buffer


  Additional Information …

  Item numbers are valid only for 1 piece, when ordering individual components please state the desired amount. For 2 bi-parting metal sliding doors please order 2 sets. Lower guide channel and upper track have to be ordered separately. Installation plan for planning and execution available upon request.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.377



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.346-1.347.pdf

  Hafele 940.84.012 HAWA Junior 80/M Fitting Set, without cover caps
