Hafele 940.80.003 Sliding Door Hardware, HAWA Junior 80/Inox, set

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.003

  Product Title: Sliding Door Hardware, HAWA Junior 80/Inox, set, Top hung system, For 1 door

  Category: Sliding Door Hardware, HAWA Junior 80/Inox, set, Top hung system, For 1 door

  Item Details …

  - For 2 bi-parting sliding doors, please order 2 sets

  - Improved corrosion resistance

  - Outstanding durability

  - Rattle-free bottom guide

  - Smooth quiet operation

  - Stainless steel suspension plates and bolts

  - Vertically and laterally adjustable

  - Door stop with adjustable retension spring

  - Number of doors : 1.00

  - For door material : Metal

  - For door weight : ?80 kg

  - Material/finish : Steel, Plastic

  - Controller installation options : Ceiling installation

  - For door thickness : ?26 mm

  - Adjustment facility : Vertically and laterally adjustableDoor stop with adjustable retention spring

  - For door thickness min. : 1"

  - Door weight max. : 176 lbs

  - Load bearing capacity : 176 lbs.

  - Area of application : For 1 and 2 sliding wood doors

  - Suitable for : Wet rooms

  - For door height : ?2,300 mm

  - Running position : Top

  - Installation : Suspension with hanger bolt, Positive-fit clamp connection (without tools)

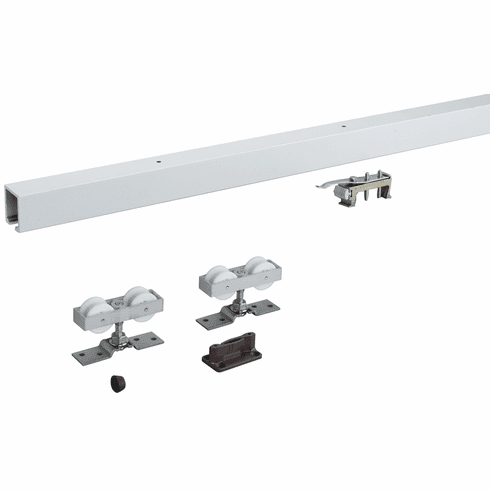

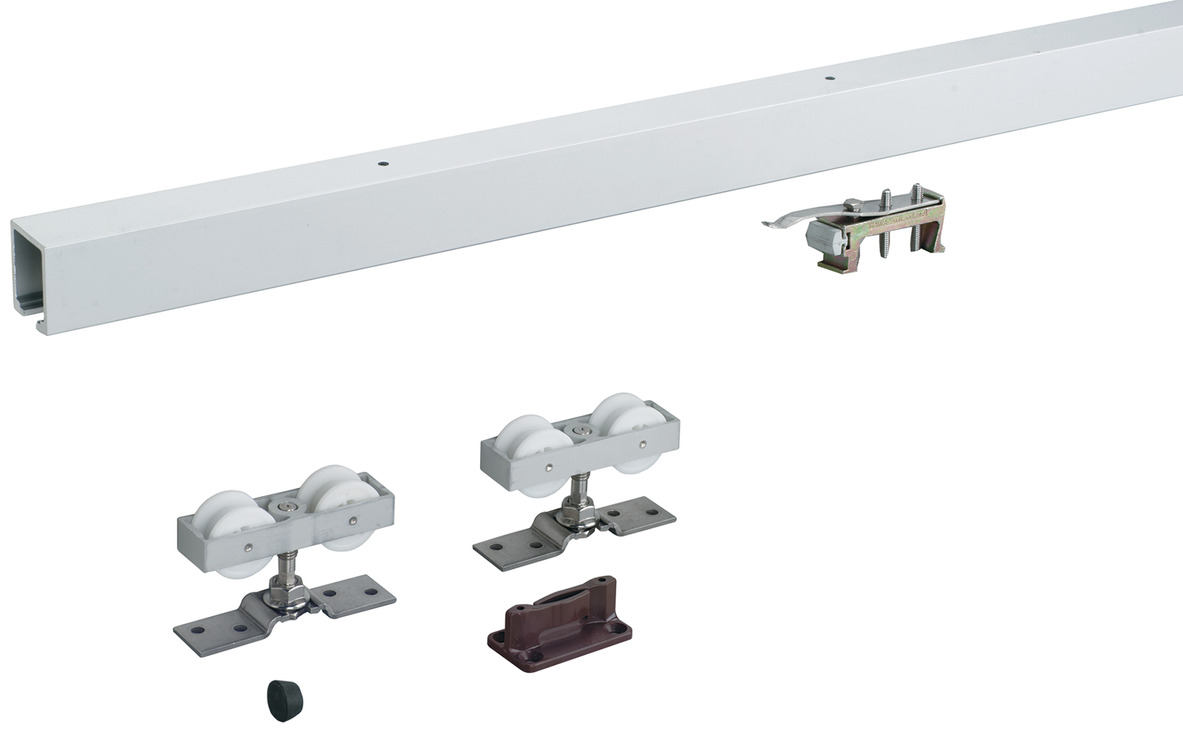

  - Supplied with:

  - 2 x double roller running gear

  - 2 x one-way suspension plate

  - 1 x floor mounted guide

  - 1 x track stopper

  - 1 x wall buffer

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.97



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.64-1.65.pdf

  Hafele 940.80.003 HAWA Junior 80/Inox Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 940.80.003
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):


  • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m

    940.41.130

    Click to order



  Optional Accessories:



  • Assembly Wedge, for Doors Running in the Ceiling
