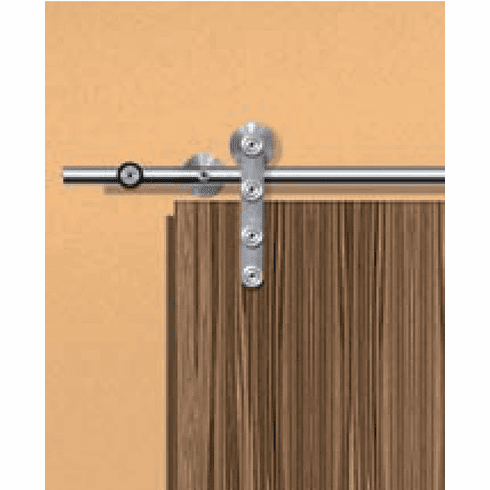

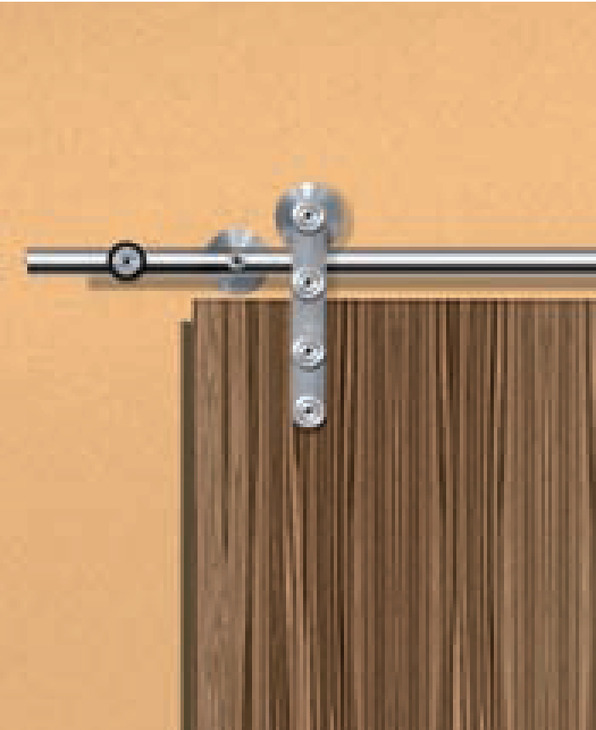

Hafele 940.64.127 Hollow Stainless Steel Track Set Flatec IV for Wood Doors, 2.3 m length

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.64.127

  Product Title: Hollow Stainless Steel Track Set, Flatec IV for Wood Doors, 2.3 m length

  Category: Hollow Stainless Steel Track Set, Flatec IV for Wood Doors

  Item Details …

  - Additional running gears required for two door applications

  - Smooth quiet operation

  - Maintenance-free

  - Simple installation

  - Stainless steel components

  - Number of doors : 1.00

  - For door material : wood

  - For door weight : ?100 kg

  - Material/finish : Stainless steel

  - Controller installation options : Wall mounting

  - For door thickness : 35?–?45 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height: (±1/8") ±3 mm

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : 220 lbs.

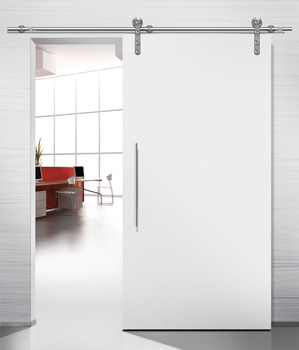

  - Area of application : For 1 sliding wood door

  - Running position : Top

  - Order reference

  - Hangar Bolts, Compensation Disks and Spacers are not included and need to be ordered separately.

  - Supplied with:

  - 4-5 wall attachments

  - 2 door stoppers

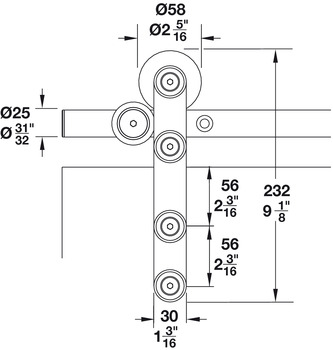

  - 2 running gears

  - Upper track

  - Lower guide

  - Hex key

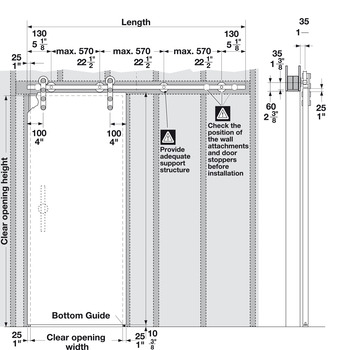

  - Installation plan included in fitting set, also available for planning and execution upon request

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.169



• Specifications

  Hafele 940.64.127, 940-64-127, 94064127, 940.64


  Specifications/Hafele Catalog - Page# AH1.101: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding Door Hardware Catalog Return to: All Hafele Catalogs
