Hafele 940.64.125 Hollow Stainless Steel Track Set Flatec IV for Wood Doors, 1.8 m length

Product Information

• Description

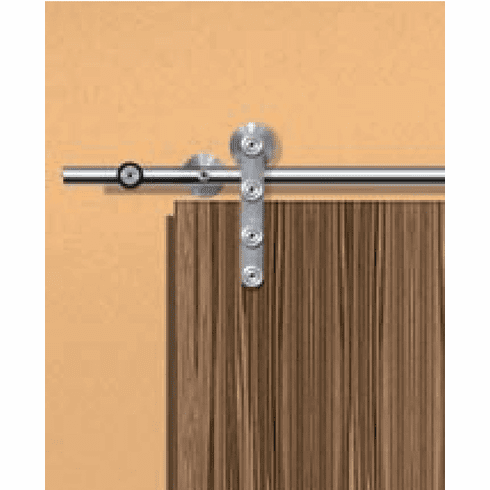

  Hafele 940.64.125 Hollow Stainless Steel Track Set
  Flatec IV for Wood Doors, 1.8 m length



  Load bearing capacity : (220 lbs) 100 kg

  For door thickness : (1 3/8 - 1 3/4") 35 - 45 mm

  Application : For 1 sliding wood door

  Adjustment : Height: (±1/8") ±3 mm

  Material : Stainless steel



  Supplied with :

  • 4-5 wall attachments
  • 2 door stoppers
  • 2 running gears
  • Upper track
  • Lower guide
  • Hex key

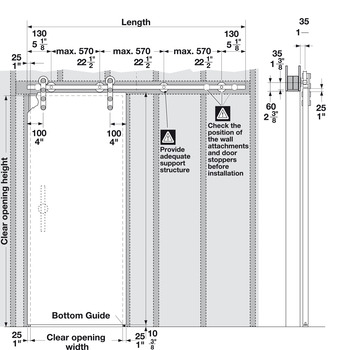

  • Installation plan included in fitting set, also available for planning and execution upon request





• Specifications

  Hafele 940.64.125, 940-64-125, 94064125, 940.64
