Hafele 940.60.115 Sliding Door Hardware, EKU Porta 60/100 HM/HMD, set for 1-leaf wooden sliding doors, Door weights not more than 60 kg (132 lbs), version C, without upper track

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.60.115

  Product Title: Sliding Door Hardware, HAWA Porta 60/100 HM/HMD, set without running track, for 1-leaf wooden sliding doors, Without running track, Door weight ?60 kg, Silver colored

  Category: Sliding door fitting, HAWA Porta 60/100 HM/HMD, set without running track, for 1-leaf wooden sliding doors

  Item Details …

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Soft closing mechanism : with soft closing mechanism (optional)

  - For door width : ?1,600 mm

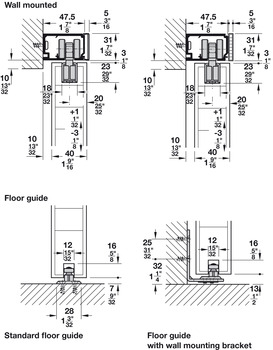

  - Controller installation options : Wall mounting

  - For door thickness : 30?–?40 mm

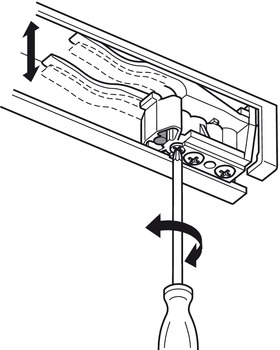

  - Adjustment facility : Height adjustment: -3?–?1 mm

  - Area of application : For 1 doors

  - For door height : ?2,700 mm

  - Running position : Top

  - Door processing : With recess

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears with suspension screw and nut, M8

  - 2 support profiles

  - 2 cover caps

  - 2 track stopper with retaining spring

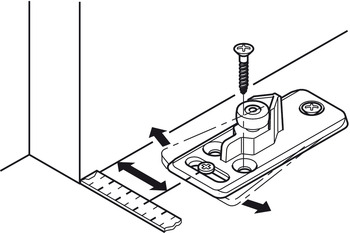

  - 1 floor guide, adjustable

  - 1 set of fixing screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.57

  TCH_Architectural_Hardware_2022|Page 1.59



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.34-1.35.pdf

  Hafele 940.60.115 EKU-Porta 60 HM/HMD Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 940.60.115
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled, 30 x 31 mm (W x H) (choose one):


  • For Hawa, Length: 2 m (6’ 6 3/4”), mill finish For Hawa, Length: 2 m (6’ 6 3/4”), anodized finish For Hawa, Length: 2.5 m (8’ 2 7/16”), mill finsh For Hawa, Length: 2.5 m (8’ 2 7/16”), anodized finsh For Hawa, Length: 6 m (19’ 8 1/4”), mill finish For Hawa, Length: 6 m (19’ 8 1/4”), anodized finish

    941.00.200 941.00.205 941.00.250 941.00.255 941.00.600 941.00.605

    Click to order Click to order Click to order Click to order Click to order Click to order



  Dual Running Track, Aluminum, Anodized (choose one):


  • for Hawa Divido, Length: 2.5 m (8’ 2 7/16”) for Hawa Divido, Length: 3.5 m (11’ 5 13/16”)

    941.12.925 941.12.935

    Click to order Click to order



  Triple Running Track, Pre-drilled, 111 x 31 mm (W x H) (choose one):


  • for Hawa Divido, Length: 2.5 m (8’ 2 7/16”) for Hawa Divido, Length: 3.5 m (11’ 5 13/16”) for Hawa Divido, Length: 6 m (19’ 8 1/4”)

    941.13.425 941.13.435 941.13.460

    Click to order Click to order Click to order



  Running track, Pre-drilled, 47.5 x 31 mm (W x H) (choose one):


  • for Hawa Porta, Divido, black anodized, length: 2500 mm for Hawa Porta, Divido, black anodized, length: 3500 mm for Hawa Porta, Divido, silver anodized, length: 2,500 mm for Hawa Porta, Divido, silver anodized, length: 3,500 mm for Hawa Porta, Divido, silver anodized, length: 6,000 mm

    940.60.601 940.60.602 940.60.825 940.60.835 940.60.860

    Click to order Click to order Click to order Click to order Click to order



  Running track, with recess for installation opening, pre-drilled, 30 x 31 mm (W x H) (choose one):


  • for Hawa Porta, Aluminium, silver coloured anodized, length: 2500 mm

    941.00.251

    Click to order



  Optional Accessories:



  • Bottom guide, adjustable

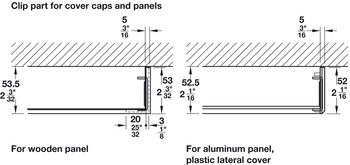

  • Clip-on panel, 31 mm
  • Safety clip set, For wooden and aluminum panels, prevents the track from being bent apart
  • End cap set, with safety clip for aluminum panel

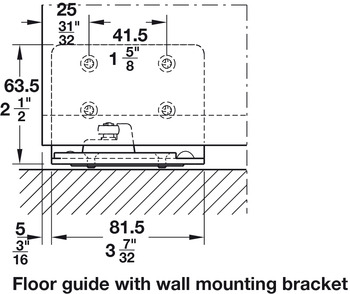

  • Bottom guide, With wall mounting bracket
  • Running track, Pre-drilled, for ceiling installation
  • Screw set, +15 mm, for Hawa Porta 60/100 HM
  • Retractable door seal, Schall-Exฎ Slide & Lock M-12 WS, Athmer
  • Sealing Profile, Drilled
  • Upper Track Cleaning Tool, For Hawa Porta, Divido
  • Supplementary Sets, For Hawa Divido 100 H/100 HM, stacking
