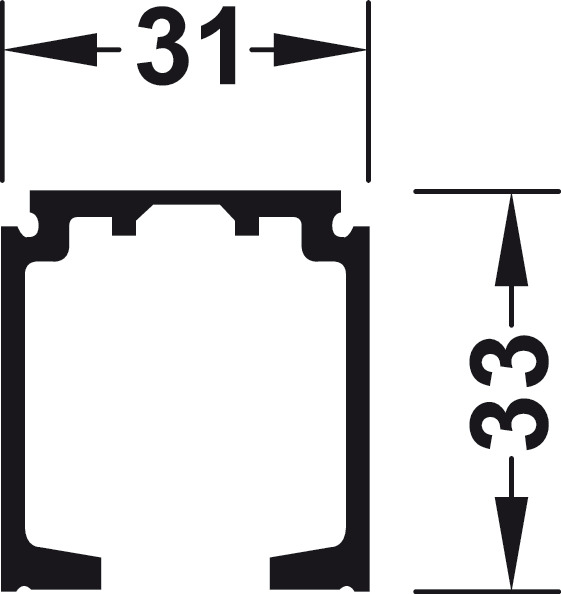

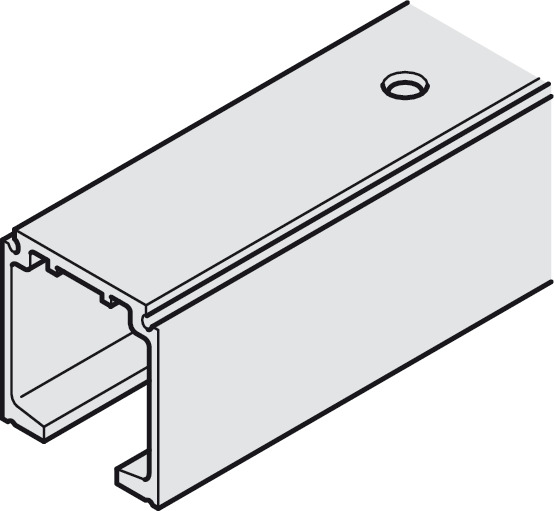

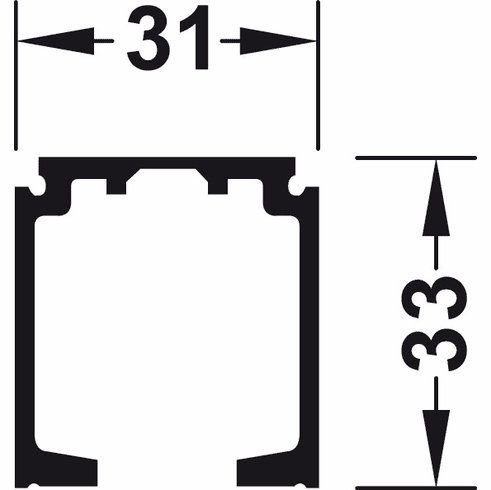

Hafele 940.43.662 Single Running Track, Pre-drilled, W x H: 31 x 33 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.43.662

  Product Title: Single Running Track, Pre-drilled, W x H: 31 x 33 mm, For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m)

  Category: ,

  Item Details …

  - Product type : Single Running Track

  - Width : 31.00 mm

  - Height : 33.00 mm

  - Version : pre-drilled

  - Door weight max. : 176 lbs.

  - Load bearing capacity :

  - Area of application : For door weight 40–120 kg

  - Material : Aluminum

  - Track version : Single

  - For door weight : 50β€Šβ€“β€Š160 kg


  Additional Information …

  Bright aluminium running track cannot be used in combination with the clip panel.Approved for door weights up to 160 kg in combination with Slido D-Line11 160P with soft and self closing mechanism on both sides.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Clip-on panel, for running track
  • Clip-on panel, for running track
  • Clip-on panel, for running track
  • Clip-on panel, For running track, for integration in suspended ceilings
  • Sliding Door Hardware, HΓ€fele Slido Classic 40-O / 80-O / 120-O, set
  • Mounting bracket, with screw and nut
  • Sliding Door Hardware, Slido D-Line11 50P to 120P, set without running track
