Hafele 940.41.002 Sliding Door Hardware, HAWA Telescopic 40/4, set Top Hung System, for 4-leaf sliding doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.41.002

  Product Title: Sliding Door Hardware, HAWA Telescopic 40/4, set, Top Hung System, for 4-leaf sliding doors

  Category: Sliding Door Hardware, HAWA Telescopic 40/4, set, Top Hung System, for 4-leaf sliding doors

  Item Details …

  - Outstanding durability

  - Rattle-free bottom guide

  - Smooth quiet operation

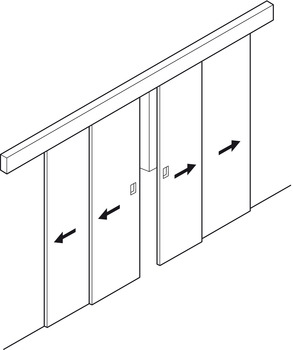

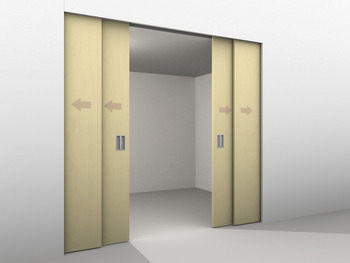

  - Simultaneous opening and closing of 4 sliding doors

  - Special two-way suspension

  - Vertically and laterally adjustable

  - Door stop with adjustable retention spring

  - Model series : Junior

  - Model : 80 Z Telescopic 4

  - For door width (inches) : 19 11/16" - 47 1/4"

  - Load bearing capacity : 88 lbs. per sliding door

  - For door thickness min. : 1 1/4"

  - For door thickness max. : 1 7/8"

  - Area of application : For 4 sliding wood doors

  - For door material : wood

  - Number of doors : 4.00

  - For door weight : ?40 kg

  - For door width : 500?–?800 mm

  - For door height : ?4,000 mm

  - For door thickness : 40?–?47 mm

  - Further adjustment facility : Door height adjustable

  - Controller installation options : Ceiling installation

  - Order reference

  - Please order 4 Hawa Junior 80 Z sets separately. Please order running tracks separately.

  - Supplied with:

  - 2 x wide driver

  - 2 x long guide pulley wheel

  - 2 x short guide pulley wheel

  - 2 x toothed belt mounting device

  - 2 x 2.7m toothed belt

  - 1 x 10 m toothed belt

  - 2 x driver counter plate

  - 2 x floor guides

  - 2 x defection rollers

  - 1 x clamping element for ends of toothed belt

  - 2 x clamping element for continuous toothed belt


  Additional Information …

  In addition, 4 sets of HAWA Junior 80/Z must be ordered with each Telescopic 40/4 fitting set.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.105



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.66-1.67.pdf

  Hafele 940.41.002 HAWA Telescopic 40/4 Fitting Set, for four panels


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 940.41.002
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Sliding Door Hardware, Hawa Junior 80/Z, set (choose one):


  • Top Hung System, for 1 sliding door without upper track, With 1 track stopper Top Hung System, With 2 track buffers

    940.80.001 940.80.015

    Click to order Click to order



  Upper Track, Pre-drilled (choose one):


  • for Hawa Symmetric, Telescopic, Junior, 1.4 m (4’ 7 1/8”) for Hawa Symmetric, Telescopic, Junior, 1.6 m (5’ 3”) for Hawa Symmetric, Telescopic, Junior, 1.8 m (5’ 10 7/8”) for Hawa Symmetric, Telescopic, Junior, 2 m (6’ 6 3/4”) for Hawa Symmetric, Telescopic, Junior, 2.2 m (7’ 2 5/8”) for Hawa Symmetric, Telescopic, Junior, 2.5 m (8’ 2 7/16”) for Hawa Symmetric, Telescopic, Junior, 3 m (9’ 10 1/8”) for Hawa Symmetric, Telescopic, Junior, 4 m (13’ 1 1/2”) for Hawa Symmetric, Telescopic, Junior, 6 m (19’ 8 1/4”)

    940.80.140 940.80.160 940.80.180 940.80.200 940.80.220 940.80.250 940.80.300 940.80.400 940.80.600

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):


  • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m

    940.41.130

    Click to order



  Optional Accessories:



  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Floor Guide, Hawa-Confort 120, 1-piece
