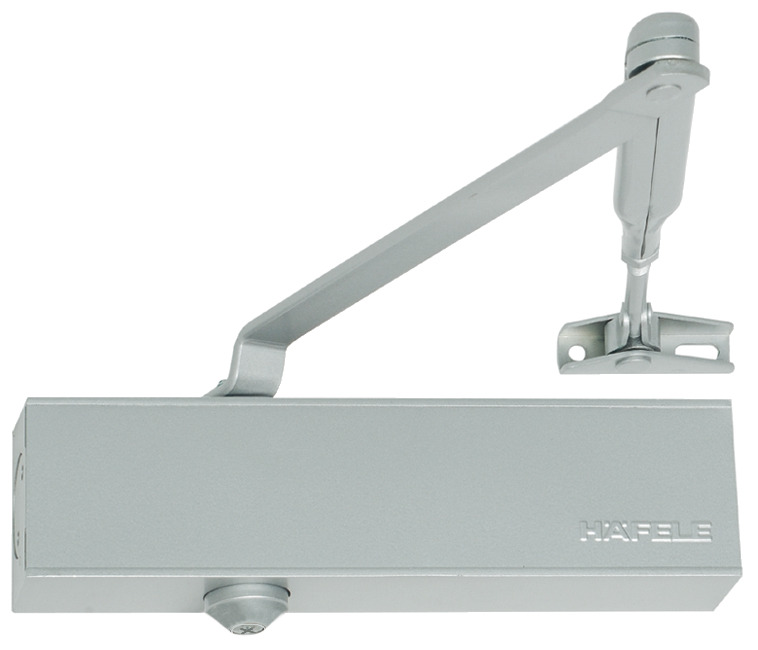

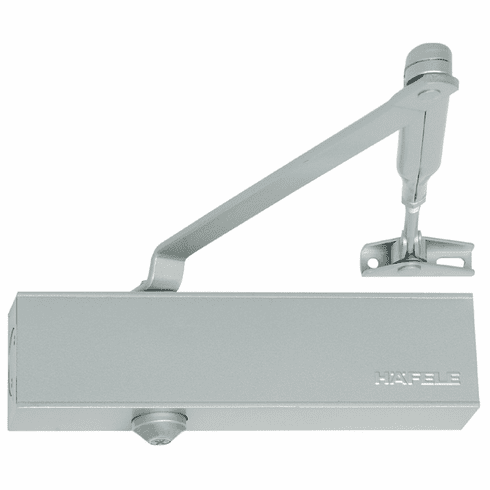

Hafele 931.84.829 Overhead door closer, DCL 51, EN 2-5, with arm, Startec With standard arm, silver colour lacquered

Product Information

• Description

  Hafele 931.84.829 Overhead door closer, DCL 51, EN 2-5, with arm, Startec
  With standard arm, silver colour lacquered

  1 DCL 51 with standard arm

  Material : Aluminium

  Finish : Silver colour lacquered DCL 51 with standard arm

  Application : Fire resistance and smoke control

  Features : With standard arm

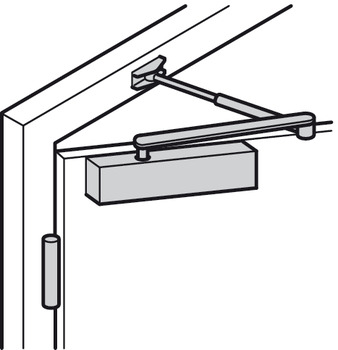

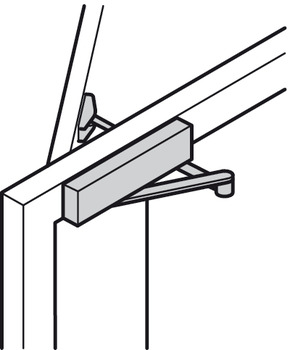

  Installation : Standard installation on pull side and overhead installation on push side

  Adjustment : Closing speed, backcheck and latching action adjustable

  Closing force : 2-5

  Door width : ‰¤1,250 mm

  Door weight : ‰¤100 kg

  Opening angle : ‰¤180 °

  Mounting : For DIN left and DIN right hand use

  Standard : Certified in compliance with EN 1154:1996/A1:2002

  Class :

  4

  8

  2 - 5

  0/1

  1

  3





  Supplied with :

  Door closer complete with arm assembly
