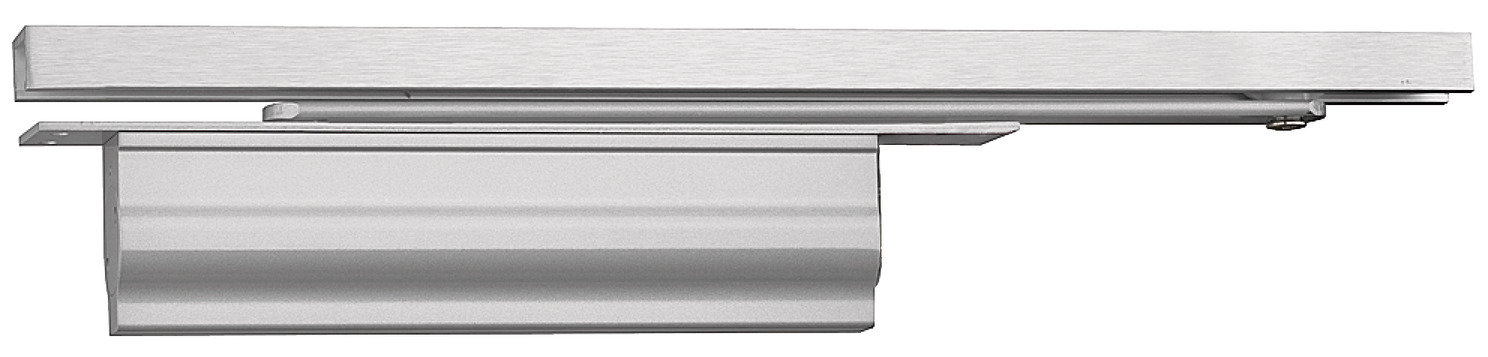

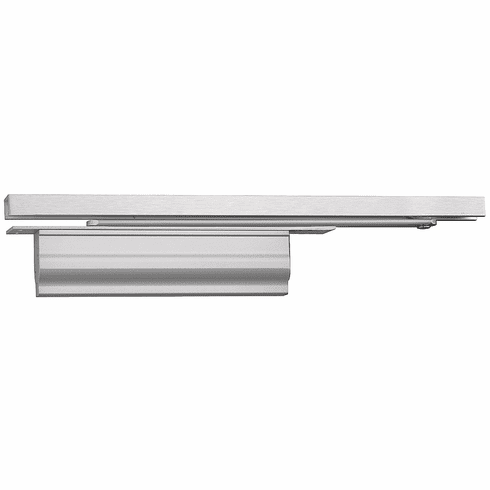

Hafele 931.84.259 Overhead door closer, DCL 32, concealed, EN 3, Startec

Product Information

• Description

  Manufacturer: Hafele
  Item: 931.84.259

  Product Title: Overhead door closer, DCL 32, concealed, EN 3, Startec, With hold-open function

  Category: ,

  Item Details …

  - Area of application : Door closer and guide rail for concealed installation

  - Version : With hold-open function

  - For number of doors : 1-leaf doors

  - Adjustment facility : Closing speed continuously adjustableLatching action continuously adjustable

  - Closing force : 3 in accordance with EN 1154

  - For door width : ≤950 mm

  - For door thickness : ≥ 46 mm

  - Opening angle : ≤120 °

  - Standard : Certified in compliance with EN 1154:1996/A1:2002

  - Grade : 3|8|3|0|1|3

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Certificate

  Declaration of performance for DCL 32 door closer

  Classification Key Door Closer English Version



• Brand PDF Catalogs
