Hafele 931.84.033 Overhead door closer, DCL 33, concealed, EN 2-4, Startec With hold-open function, matt black

Product Information

• Description

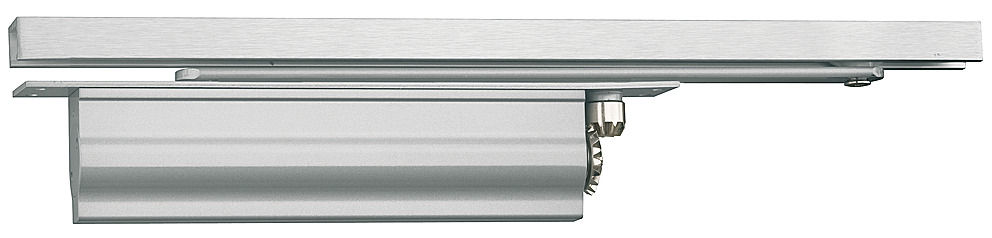

  Hafele 931.84.033 Overhead door closer, DCL 33, concealed, EN 2-4, Startec
  With hold-open function, matt black

  DCL 33 without hold open function

  Application : Fire resistance and smoke control

  Application : Door closer and guide rail for concealed installation

  Features : With hold-open function (optional)

  Adjustment : Closing speed continuously adjustable
  latching action continuously adjustable

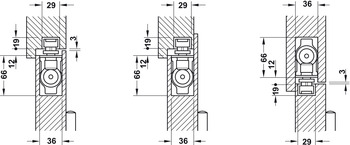

  Installation : Suitable for standard installation on door or overhead installation on frame

  Closing force : 2-4 in compliance with EN 1154

  Door width : ‰¤1,100 mm

  For door thickness : ‰¥46 mm

  Opening angle : ‰¤115 °

  Hold-open angle : ‰¤115°

  Mounting : For DIN left and DIN right hand use

  Standard : Certified in compliance with EN 1154:1996/A1:2002

  Class :

  3

  8

  2-4

  0

  1

  3
