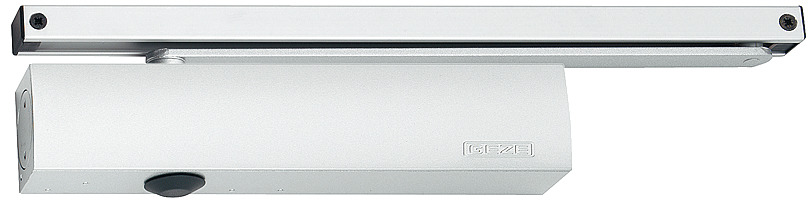

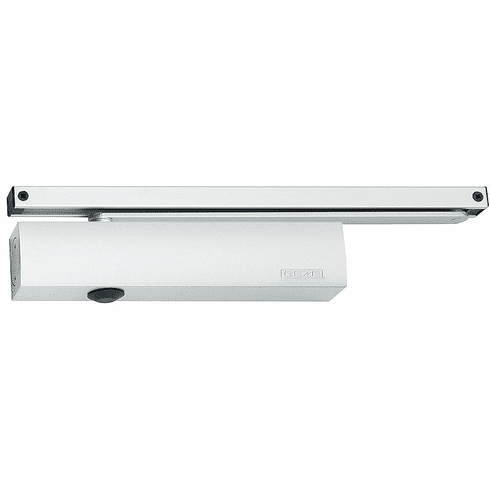

Hafele 931.10.609 Overhead door closer, TS 5000, EN 2-6, with guide rail, Geze Standard installation on pull side, overhead installation on push side, silver coloured

Product Information

• Description

  Hafele 931.10.609 Overhead door closer, TS 5000, EN 2-6, with guide rail, Geze
  Standard installation on pull side, overhead installation on push side, silver coloured



  Finish : Silver coloured Overhead door closer with guide rail

  Application : Fire resistance and smoke control

  Features : Without hold-open insert

  Adjustment : Closing force, closing speed, backcheck and latching action adjustable from the front

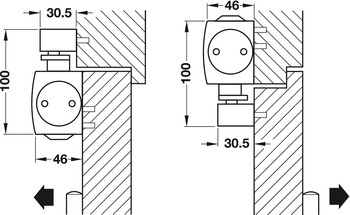

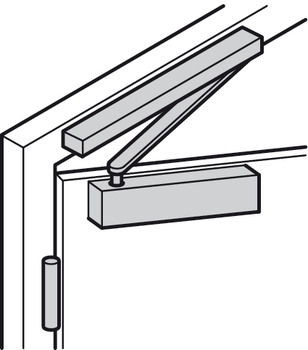

  Installation : Suitable for standard installation on pull side and overhead installation on push side

  Closing force : 2-6 in compliance with EN 1154

  Door width : ‰¤1,400 mm

  Opening angle : ‰¤180 °

  Hold-open angle : 80-130°

  Mounting : For DIN left hand and DIN right hand use

  Standard : Certified in compliance with EN 1154:1996/A1:2002

  Class :

  4

  8

  2 - 6

  0/1

  1

  4





  Supplied with :

  1 basic closer

  1 guide rail
