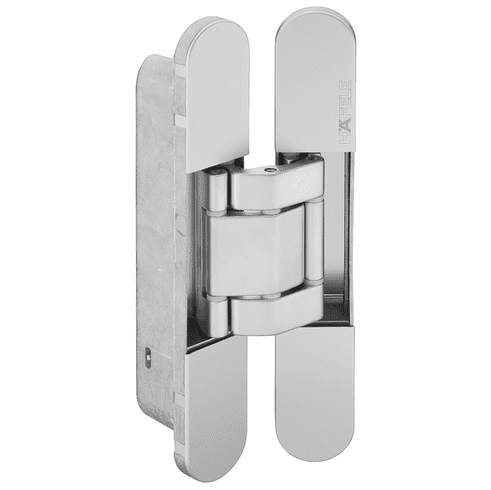

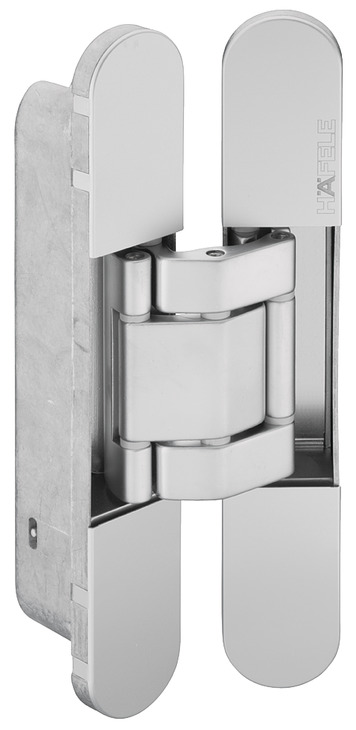

Hafele 927.91.824 Door Hinge, Startec, Concealed, Mortise, 3D Adjustable

Product Information

• Description

  Manufacturer: Hafele
  Item: 927.91.824

  Product Title: Door Hinge, Startec , Concealed, Mortise, 3D Adjustable, 3D adjustable, size 200 mm, Matt chrome

  Category: ,

  Item Details …

  - Area of application : For wooden frames, for flush wooden interior doors

  - For door type : Wooden door leaf

  - For frame type : Wooden frame

  - Max. door weight for 2 hinges : 120.00 kg

  - Max. door weight for 3 hinges : 140.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ≥40 mm

  - Adjustment facility : 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

• Data Sheet

  Detailed Data Sheet
