Hafele 927.91.342 Door Hinge, Atomika

Product Information

• Description

  Manufacturer: Hafele
  Item: 927.91.342

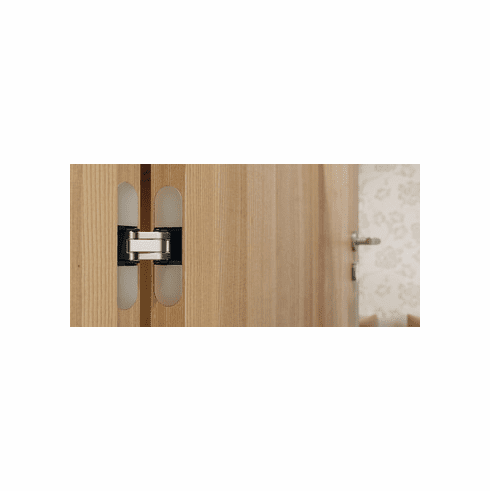

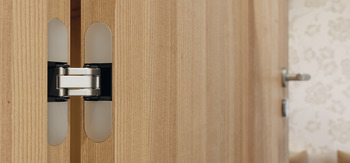

  Product Title: Door Hinge, Atomika, 3D adjustable, size 120 mm

  Category: ,

  Item Details …

  - ANSI/UL 10C Certified

  - Door width max. : 900.00 mm

  - Color/finish :

  - Material : Steel

  - Model : H12

  - Door weight max. : 132 lbs with 2 door hinges

  - For door width (inches) : ≤ 35 7/16"

  - Model series : H12

  - Area of application : For flush interior wood doors - 3D Adjustable

  - Max. door weight for 2 hinges : 60.00 kg

  - Opening angle : 180.00 °

  - Door height max. : 2,100.00 mm

  - Door thickness : 38 – 45 mm

  - Adjustment facility : 3DContinuous, Side: 1 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

  - Order reference

  - Fixing material supplied.

  - Hex key for adjustment supplied.

  - Other finishes available on request.

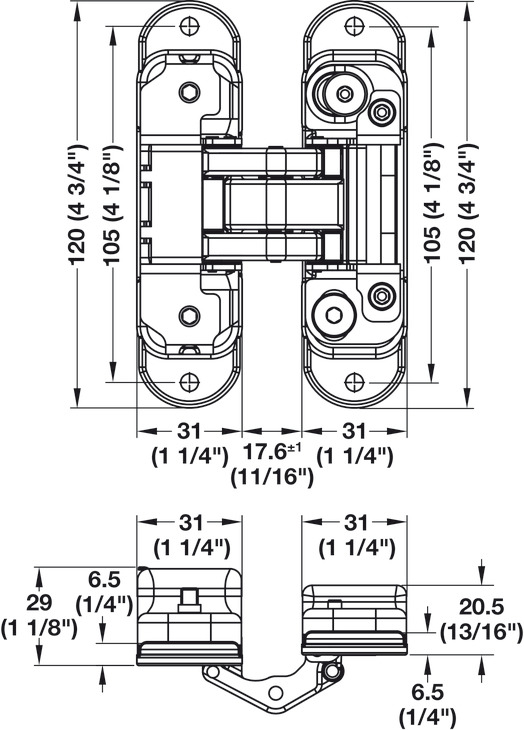

• Data Sheet

  Detailed Data Sheet
