Hafele 927.78.023 CONCL HNG ADJ SURF MNT MATTE BLK 65KG/3

Product Information

• Description

  Manufacturer: Hafele
  Item: 927.78.023

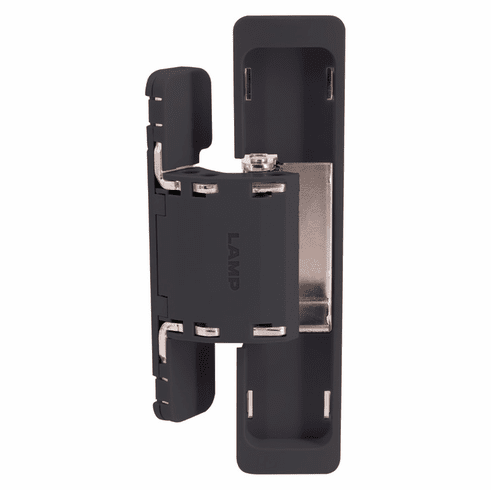

  Product Title: Concealed Hinge, Adjustable Surface Mount, 65 kg (140 lbs) per set of 3, matt black

  Category: Concealed Hinge, Adjustable Surface Mount, 65 kg (140 lbs) per set of 3

  Item Details …

  - Surface mounts to the door frame for easy installation.

  - Minimum door thickness is 1-1/2" (38 mm) or more.

  - Opens to 125°. Door stopper is required to prevent breakage of the hinges and failure of the door.

  - Adjustable depth ±1/8" (3 mm), vertical ±1/8" (3 mm), horizontal with spacer ±1/16" (1 mm)

  - Successfully passed 300,000 open/close private cycles.

  - Max. door weight for 3 hinges : 65.00 kg

• Data Sheet

  Detailed Data Sheet
