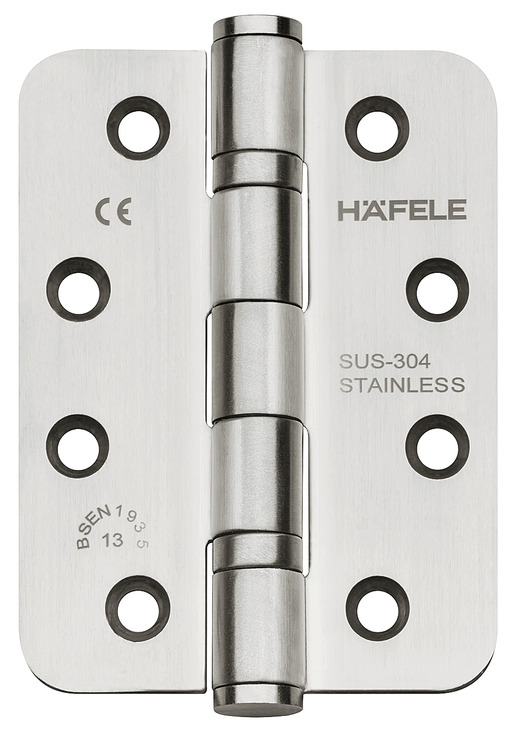

Hafele 926.98.050 Butt Hinge, Startec, Stainless Steel, 4" x 3" Model: DHB 3221, satin

Product Information

• Description

  Manufacturer: Hafele
  Item: 926.98.050

  Product Title: Butt Hinge, Startec, Stainless Steel, 4" x 3", size 102 mm, Model: DHB 3221, satin

  Category: Butt Hinge, Startec, Stainless Steel, 4" x 3",

  Item Details …

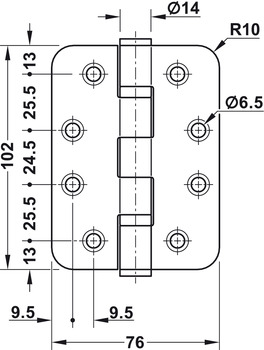

  - Mounting : For DIN left and DIN right hand use

  - Total width : 76.00 mm

  - Material : Stainless steel, quality 1.4301/AISI 304

  - Knuckle diameter : 14.00 mm

  - Knuckle diameter : 9/16"

  - Flange thickness : 3.00 mm

  - Flange thickness : 1/8"

  - Flange height : 102 mm

  - Radius : 10.00 mm

  - Door weight max. : 264 lbs

  - Dim. A : 4"

  - Dim. B : 3"

  - Area of application : For flush interior doors with wood or steel frame

  - Max. door weight for 2 hinges : 120.00 kg

  - Router bit Ø : 20.00 mm

  - Bearing type : With fixed pin, Knuckle with two ball bearings

  - Grade : 4|7|6|1|1|4|0|13

  - Supplied with:

  - Mounting screws included
