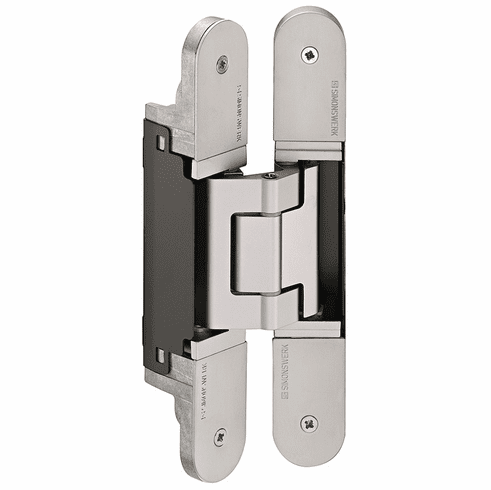

Hafele 924.19.271 Concealed Hinge, TECTUS TE 540 3D 3D adjustable, size 200 mm, Satin nickel-plated

Product Information

• Description

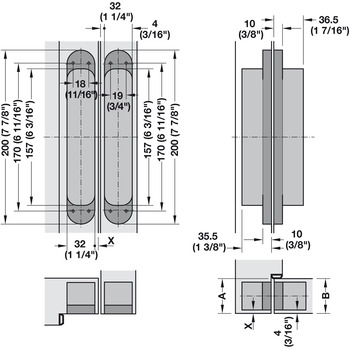

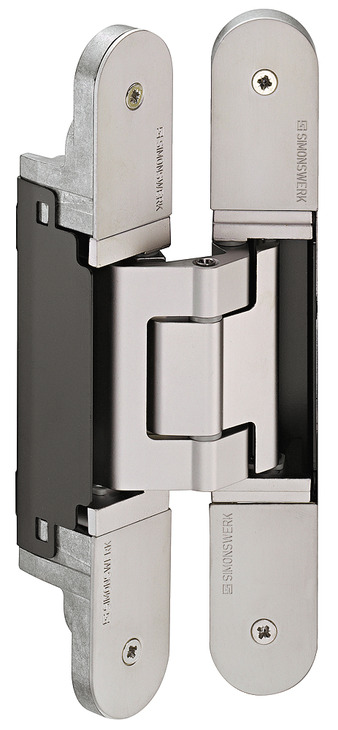

  Hafele 924.19.271 Concealed Hinge, TECTUS TE 540 3D
  3D adjustable, size 200 mm, Satin nickel-plated



  Door weight : (264 lbs.) �� 120 kg

  Opening angle : ��180 �

  For door thickness : (1 9/16��) �� 40 mm

  Router diameter : (15/16��) 24; Guide: (1 3/16") 30

  Adjustment : Continuously 3D adjustable: Width and height �3 mm (1/8"), Depth: �1.0 mm (1/16")

  Material : Aluminum die-cast



  Optional items:
  Mounting plate
  Receiver
  Mounting Plate, For Simonswerk TECTUS TE 540 3D FZ/1 concealed mortice hinge
  Receiving Element, for Simonswerk TECTUS TE 540 3D SZ concealed mortice hinge
  Routing Template, for Tectus TE
