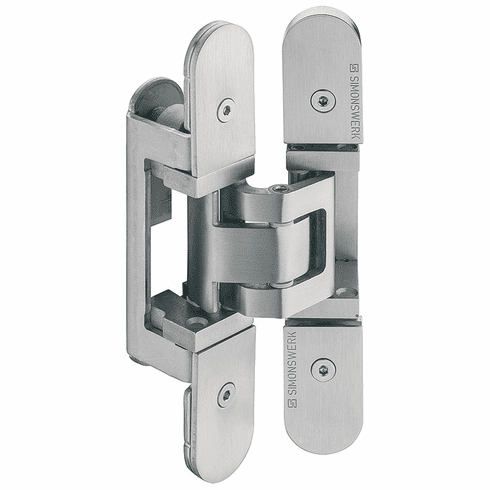

Hafele 924.19.034 Concealed Hinge, Simonswerk TECTUS TE 525 3D, concealed, for flush doors up to 100 kg TECTUS

Product Information

• Description

  Hafele 924.19.034 Concealed Hinge, Simonswerk TECTUS TE 525 3D, concealed, for flush doors up to 100 kg
  TECTUS



  Finish : Satin

  Application : Used in door frames made out of hollow metal or wood for flush doors

  Door weight : (220 lbs.) �� 100 kg

  Opening angle : ��180 �

  Router diameter : (15/16��) 24; Guide: (1 3/16") 30

  Adjustment : Continuously 3D adjustable: Width and height �3 mm (1/8"), Depth: �1.0 mm (1/16")

  For door thickness : (1 3/8��) �� 35



  Optional items:
  TE 525 3D mounting plate
  TE 525 3D receiver
  TECTUS TE 240 3D FZ/1
  For Simonswerk TECTUS TE 340 3D FZ/1 concealed mortice hinge
  for TECTUS Hinges
  For Simonswerk TECTUS TE 540 3D FZ/1 concealed mortice hinge
  For Simonswerk TECTUS TE 640 3D FZ/1 concealed mortice hinge
  for TECTUS Hinges
  for Simonswerk TECTUS TE 340 3D SZ/1 concealed mortice hinge
  for Simonswerk TECTUS TE 540 3D SZ concealed mortice hinge
