Hafele 924.19.015 Concealed Hinge, Tectus TE 541 3D FVZ, bronze metallic

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.19.015

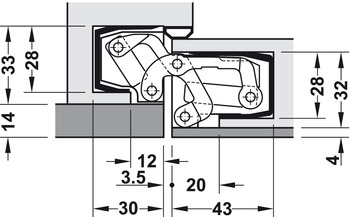

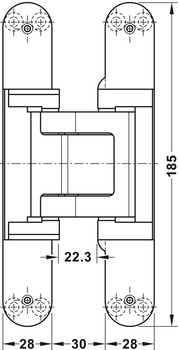

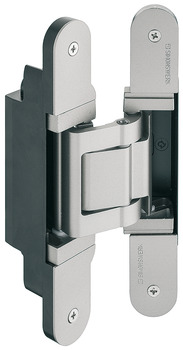

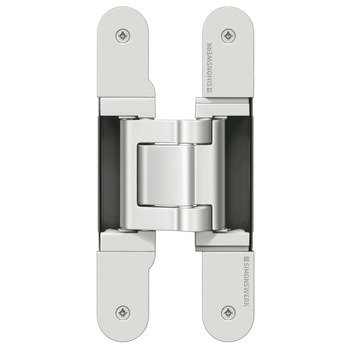

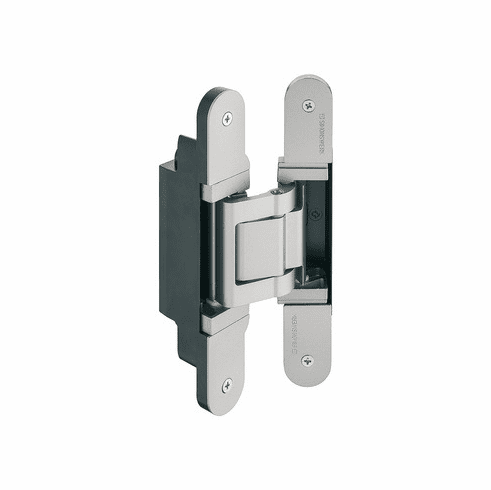

  Product Title: Concealed Hinge, TECTUS TE 541 3D FVZ, concealed, 3D adjustable, size 185 mm, Bronze metallic

  Category: ,

  Item Details …

  - Used in door frames made out of hollow metal or wood in flush interior doors

  - Suitable for left and right hand applications

  - Mounting : For DIN left and DIN right hand use

  - Flange shape : rounded

  - Flange width : 28 mm

  - Material : Aluminum, Steel

  - Flange height : 185 mm

  - Door thickness min. : 1 9/16"

  - Model series : TECTUS

  - Area of application : For wooden, steel or aluminium framesfor flush doors with recessed frame facing

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 100.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ≥40 mm

  - Router bit Diameter: : 24.00 mm

  - Router bit Diameter: : 15/16"

  - Thrust ring Diameter: : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|5|1|1|3|1|12


  Additional Information …

  Router guide Diameter:: 30 mm (1 3/16")

• Data Sheet

  Detailed Data Sheet
