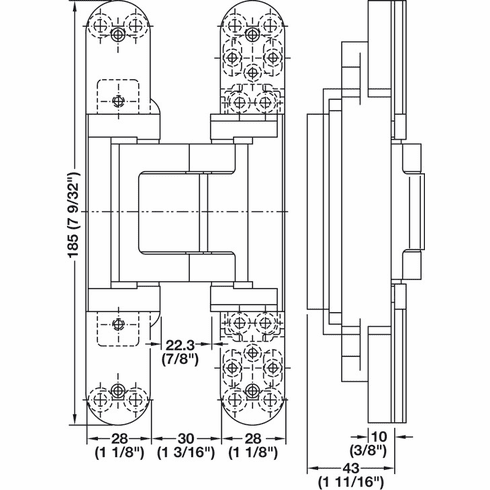

Hafele 924.19.013 Concealed Hinge, Tectus TE 541 3D FVZ, light bronze

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.19.013

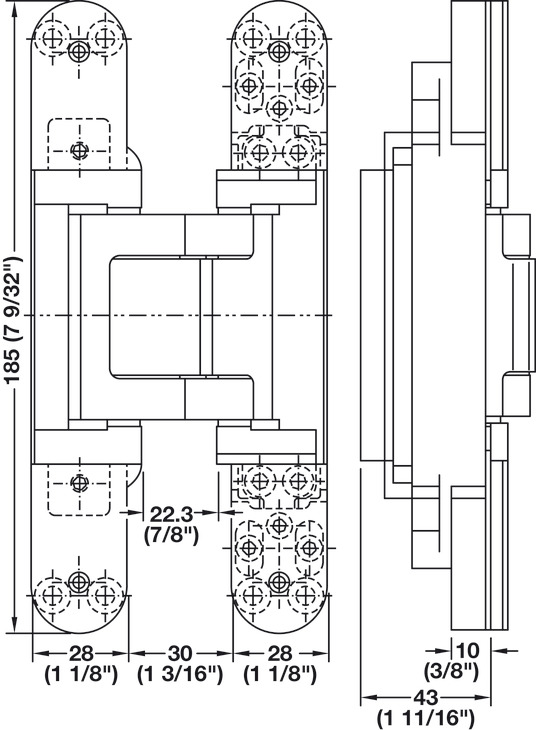

  Product Title: Concealed Hinge, TECTUS TE 541 3D FVZ, concealed, 3D adjustable, size 185 mm, bronze finish light

  Category: Concealed Hinge, TECTUS TE 541 3D FVZ, concealed, 3D adjustable, size 185 mm

  Item Details …

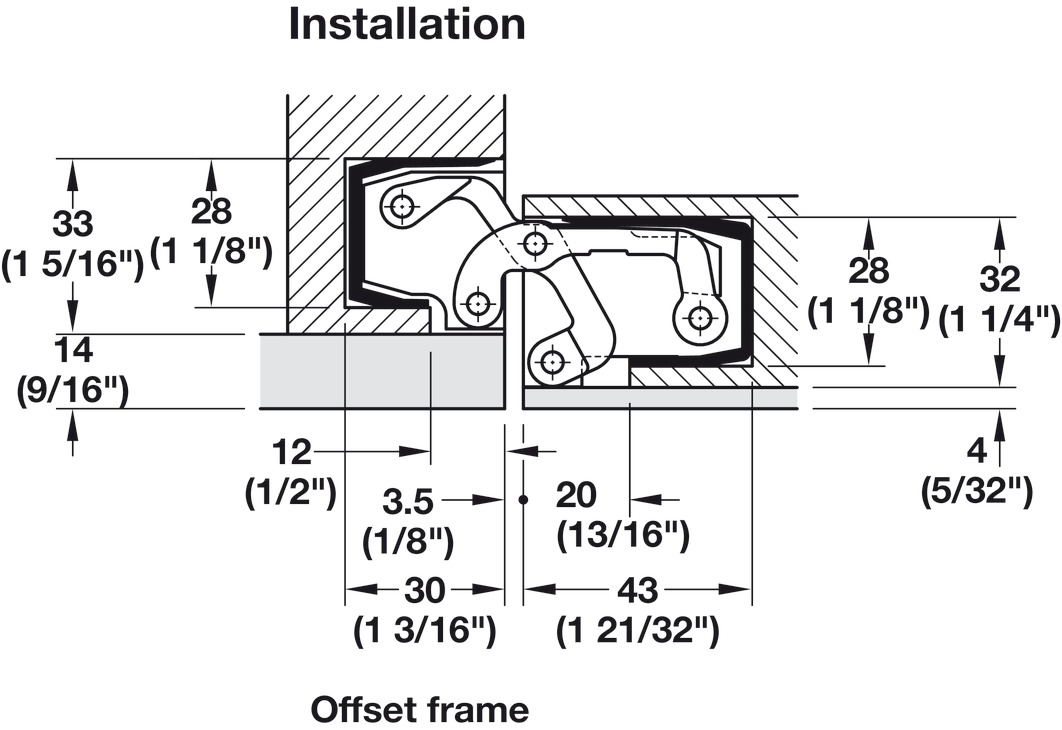

  - Used in door frames made out of hollow metal or wood in flush interior doors

  - Suitable for left and right hand applications

  - Mounting : For DIN left and DIN right hand use

  - Flange shape : rounded

  - Flange width : 28 mm

  - Material : Aluminum, Steel

  - Flange height : 185 mm

  - Door thickness min. : 1 9/16"

  - Model series : TECTUS

  - Area of application : For wooden, steel or aluminium framesfor flush doors with recessed frame facing

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 100.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?40 mm

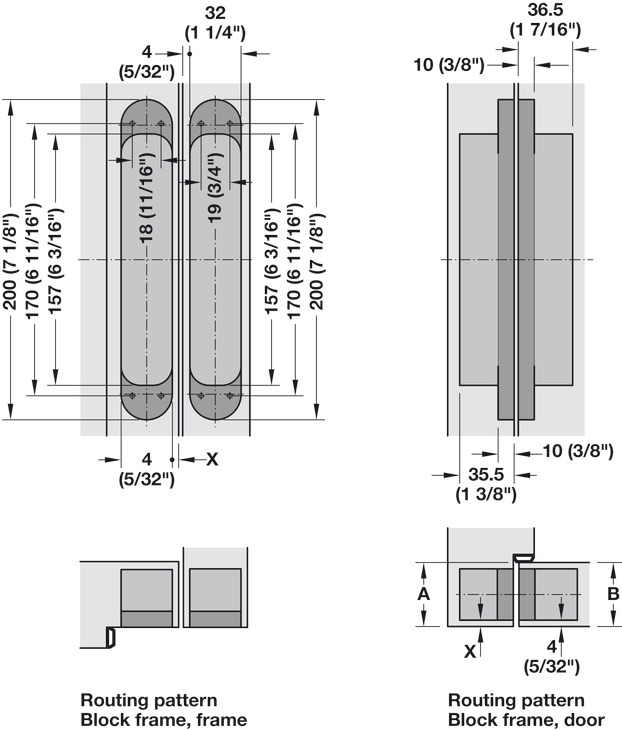

  - Router bit Ø : 24.00 mm

  - Router bit Ø : 15/16"

  - Thrust ring Ø : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|5|1|1|3|1|12


  Additional Information …

  Router guide Ø: 30 mm (1 3/16")

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 4.50



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
  • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
