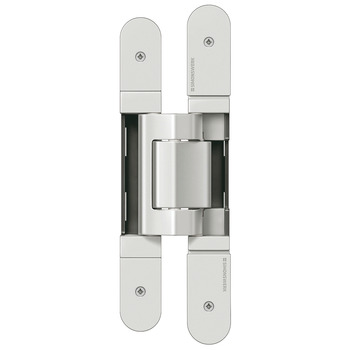

Hafele 924.19.000 Concealed Hinge, TECTUS TE 645 3D concealed, 3D adjustable, size 280 mm, Stainless steel design

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.19.000

  Product Title: Concealed Hinge, TECTUS TE 645 3D, concealed, 3D adjustable, size 280 mm, Stainless steel look

  Category: Concealed Hinge, TECTUS TE 645 3D, concealed, 3D adjustable, size 280 mm

  Item Details …

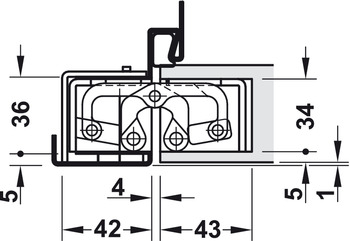

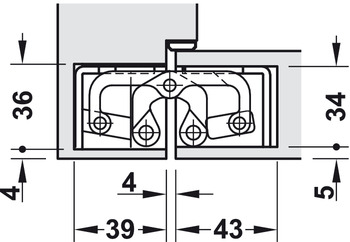

  - Used in door frames made out of hollow metal or wood in flush interior doors

  - Suitable for left and right hand applications

  - Mounting : For DIN left and DIN right hand use

  - Flange shape : rounded

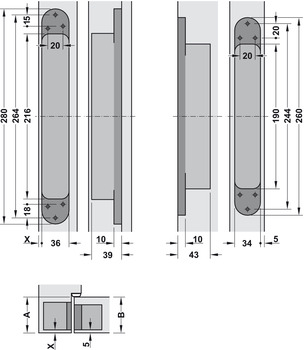

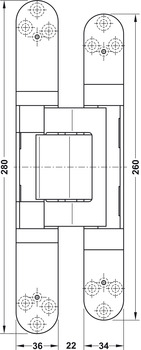

  - Flange width : 36 mm?/?34 mm

  - Material : Aluminum, Steel

  - Model : TE 645 3D

  - Flange height : 280 mm?/?260 mm

  - Model series : TECTUS

  - Area of application : For wooden, steel or aluminium framesfor flush doors

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 300.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?40 mm

  - Router bit Ø : 24.00 mm

  - Thrust ring Ø : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|7|1|1|3|1|14

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 4.49



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
  • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
