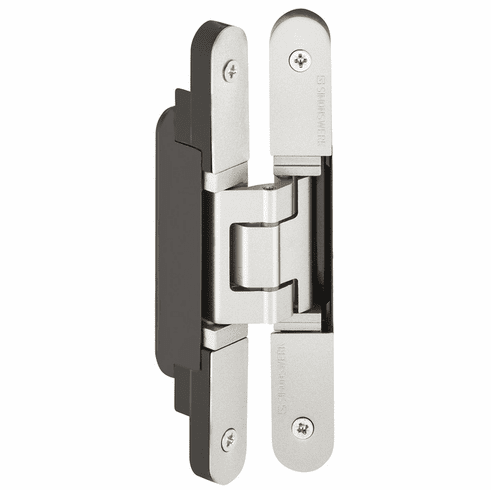

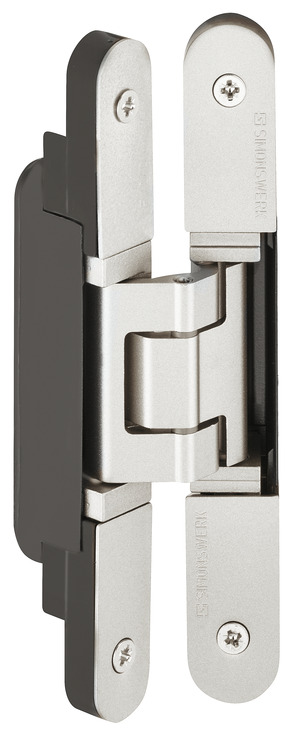

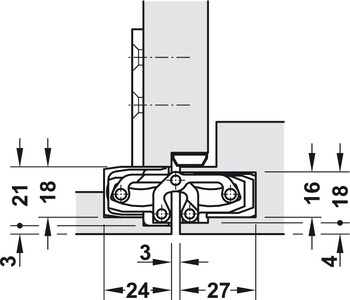

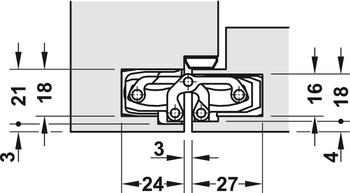

Hafele 924.18.904 Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Stainless steel look

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.18.904

  Product Title: Concealed Hinge, TECTUS TE 240 3D, 3D adjustable, size 155 mm, Stainless steel look

  Category: Concealed Hinge, TECTUS TE 240 3D, 3D adjustable, size 155 mm

  Item Details …

  - Maintenance-free slide bearings

  - Mounting : For DIN left and DIN right hand use

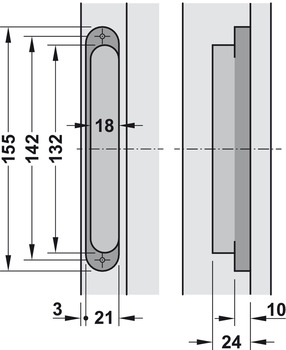

  - Flange shape : rounded

  - Flange width : 21 mm?/?18 mm

  - Material : Aluminum, Steel

  - Flange height : 155 mm

  - Door weight max. : 132 lbs

  - Door thickness min. : 1"

  - Area of application : Used in door frames made out of hollow metal or wood for flush doors

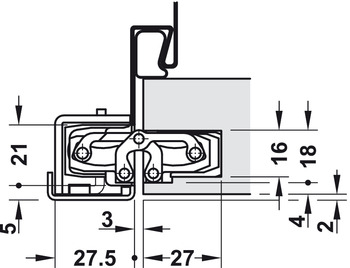

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 60.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?25 mm

  - Router bit Ø : 16.00 mm

  - Router bit Ø : 5/8”; Guide: 1 3/16"

  - Thrust ring Ø : 30.00 mm

  - Bearing type : Friction bearing, maintenance-free

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1.5 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 2|7|2|0|1|3|0|7
