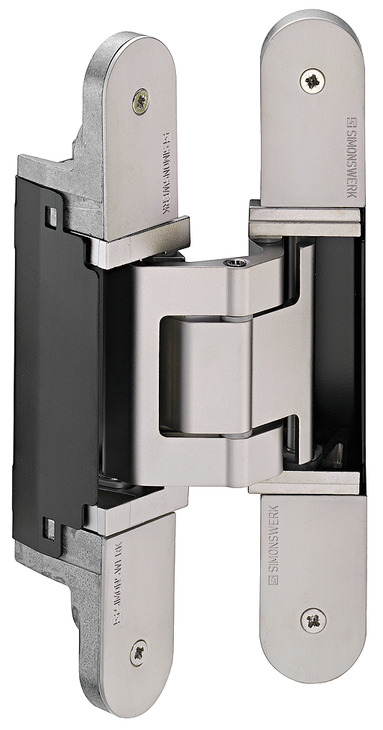

Hafele 924.17.325 Concealed Hinge, TECTUS TE 540 3D A8 3D adjustable, size 200 mm, Stainless steel effect

Product Information

• Description

  Hafele 924.17.325 Concealed Hinge, TECTUS TE 540 3D A8
  3D adjustable, size 200 mm, Stainless steel effect

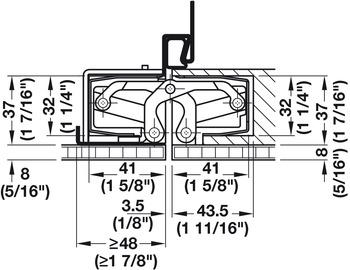

  Application : Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16��) thick surface applied panel
  UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors)
  Left and right applications

  Features : Maintenance-free slide bearings

  Adjustment : Continuously 3D adjustable: Width and height �3 mm (1/8"), Depth: �1.0 mm (1/16")

  Door weight : (220 lbs.) �� 100 kg

  Door thickness : �� (1 9/16") 40 mm

  Opening angle : ��180 �

  Router diameter : Bit: (15/16") 24
  Guide: (1 3/16") 30

  Material : Aluminum die-cast



  Optional items:
  Mounting plate
  Receiver
