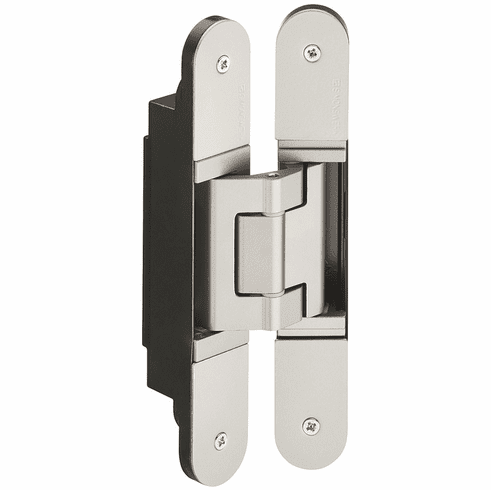

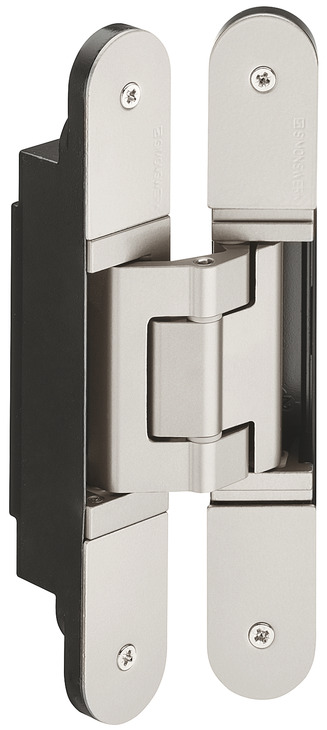

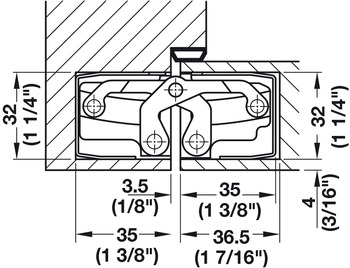

Hafele 924.17.224 Concealed Hinge, TECTUS TE 540 3D 3D adjustable, size 200 mm, Satin nickel colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.17.224

  Product Title: Concealed Hinge, TECTUS TE 540 3D, 3D adjustable, size 200 mm, Satin nickel look

  Category: Concealed Hinge, TECTUS TE 540 3D, 3D adjustable, size 200 mm

  Item Details …

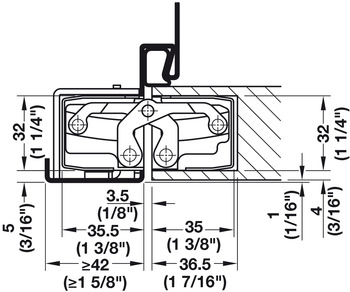

  - Used in door frames made out of hollow metal or wood in flush interior doors

  - Maintenance-free slide bearings

  - Suitable for left and right hand applications

  - UL listed for 20 minute rated fire doors (Maximum door size: 4’ x 8’ for a single door, 8’ 8’ for a pair of doors)

  - Maintenance-free slide bearings

  - Mounting : For DIN left and DIN right hand use

  - Flange shape : rounded

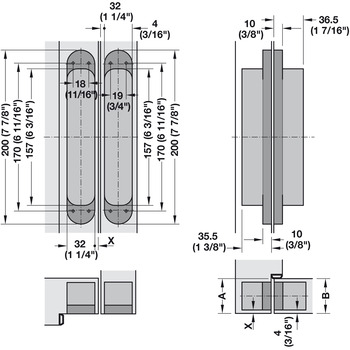

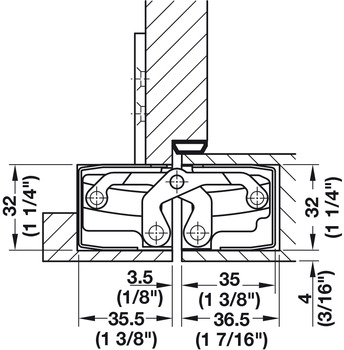

  - Flange width : 32 mm

  - Material : Aluminum, Steel

  - Flange height : 200 mm

  - Door weight max. : 264 lbs

  - For door thickness min. : 1 9/16”

  - Model series : TE 540 3D

  - Area of application : Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors

  - For frame type : Steel frame, Wooden/lining frame , Aluminium frame

  - Max. door weight for 2 hinges : 120.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?40 mm

  - Router bit Ø : 24.00 mm

  - Router bit Ø : 15/16”; Guide: 1 3/16"

  - Thrust ring Ø : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|6|1|1|3|1|13
