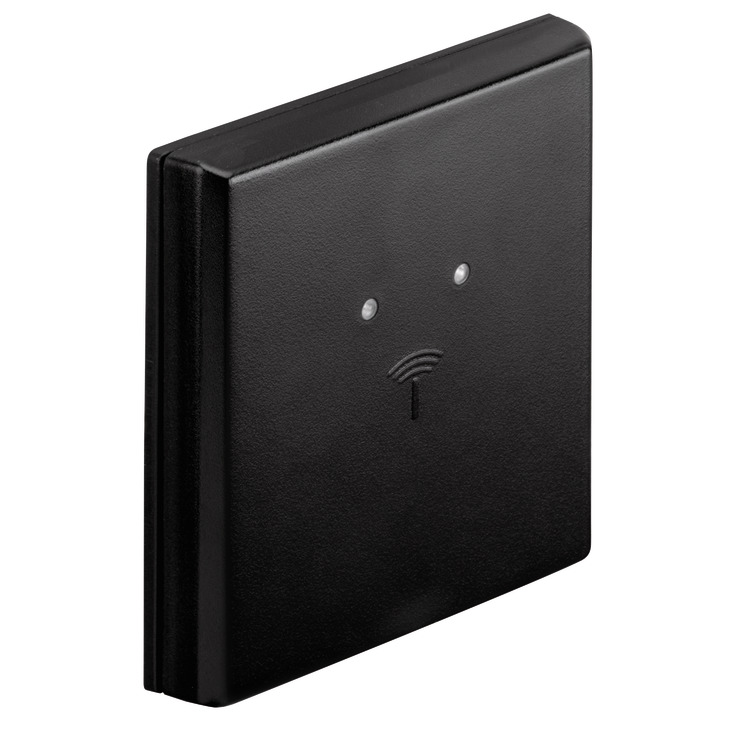

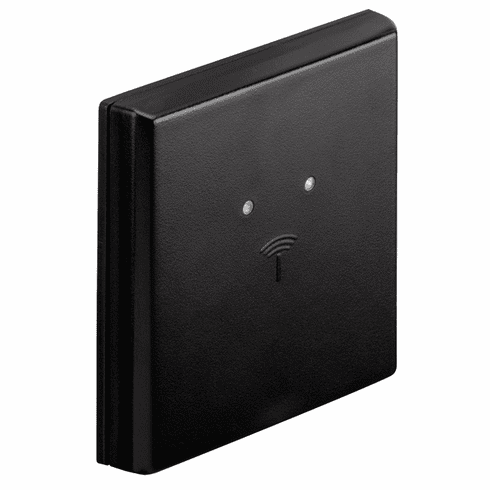

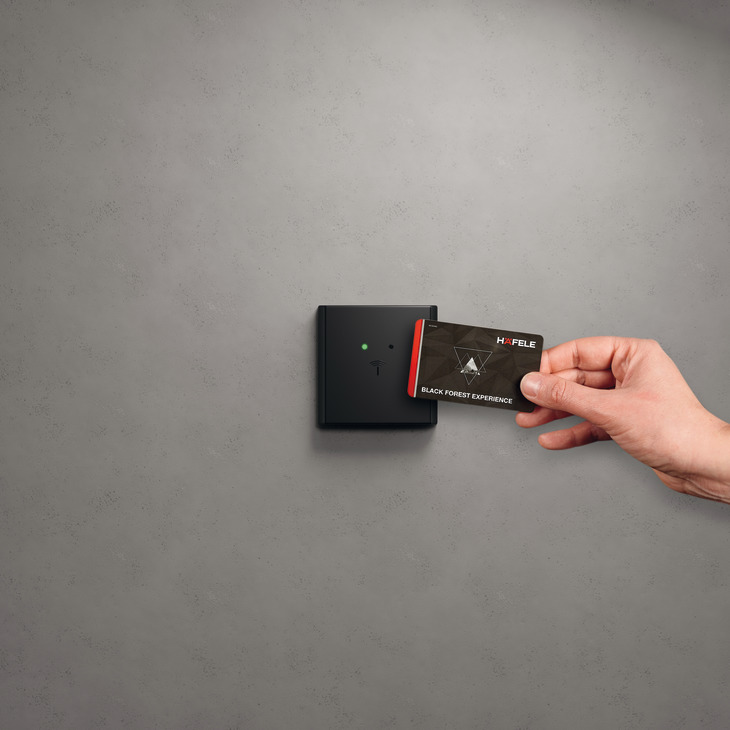

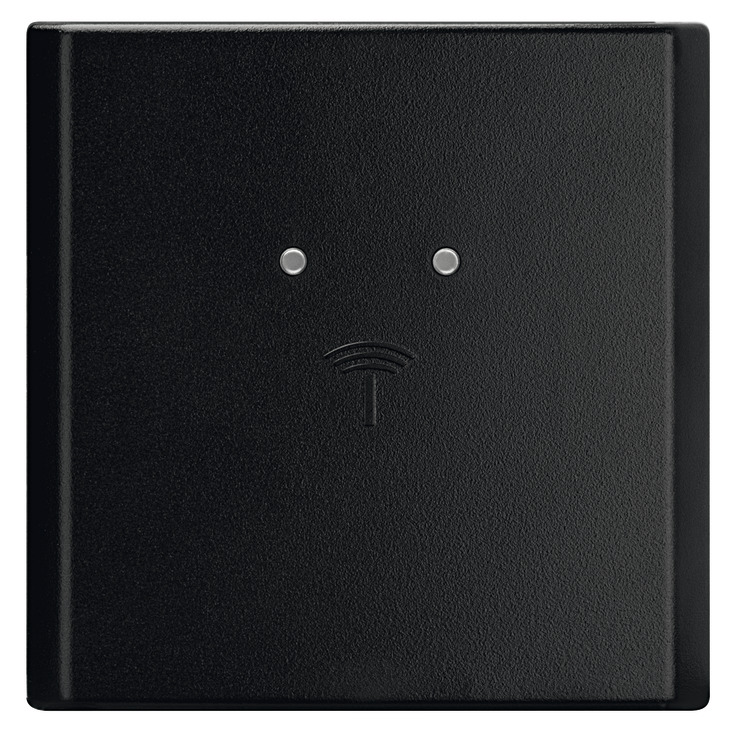

Hafele 917.91.113 Wall terminal set
Item details
All-in-one wall terminal in Häfele design (wall reader and electronic control unit in one device). Modular design for indoor and outdoor use as well as flush-mounted and surface-mounted applications.Connect Modular Core (CMC) with Bluetooth integrated.
Features
modern design with LED display, contactless opening of the access point with RFID transponder or with a mobile terminal device via low power wireless technology, Operating modes: Dialock software 2.0, Häfele My Dialock Manager app, stand-alone, Integration into the Dialock system landscape, Offline functionality, Wireless online functionality with appropriate infrastructure, Tamper protection provided by integrated sensor, visual and acoustic signalling
Scope of application
Lift control, Parking space barriers, Gates, Hinged and sliding doors, Turnstiles and separation systems
Transmission technology
RFID (13.56 MHz) / compatible with ISO 14443, ISO 15693, Bluetooth (2400-2483.5 MHz)
RFID technology
MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-it™ Iso
Low power wireless technology
Bluetooth Low Energy, Thread
Configuration and administration
Stand-alone, Häfele My Dialock Manager app, Dialock software 2.0
Design
Häfele
Power supply voltage
12–24 V DC (±15 %)
Interfaces
RS-485
Output
1 relay output port, 1 alarm output
Input
1 switching input/pushbutton input
Ambient temperature
-25?–?70 °C
Relative humidity
10?–?95 % not condensed
Order reference
Detailed information on the product and range of functions is available in the online shop or from your local Dialock technician.
Supplied with
1 wall terminal
Technical data attributes

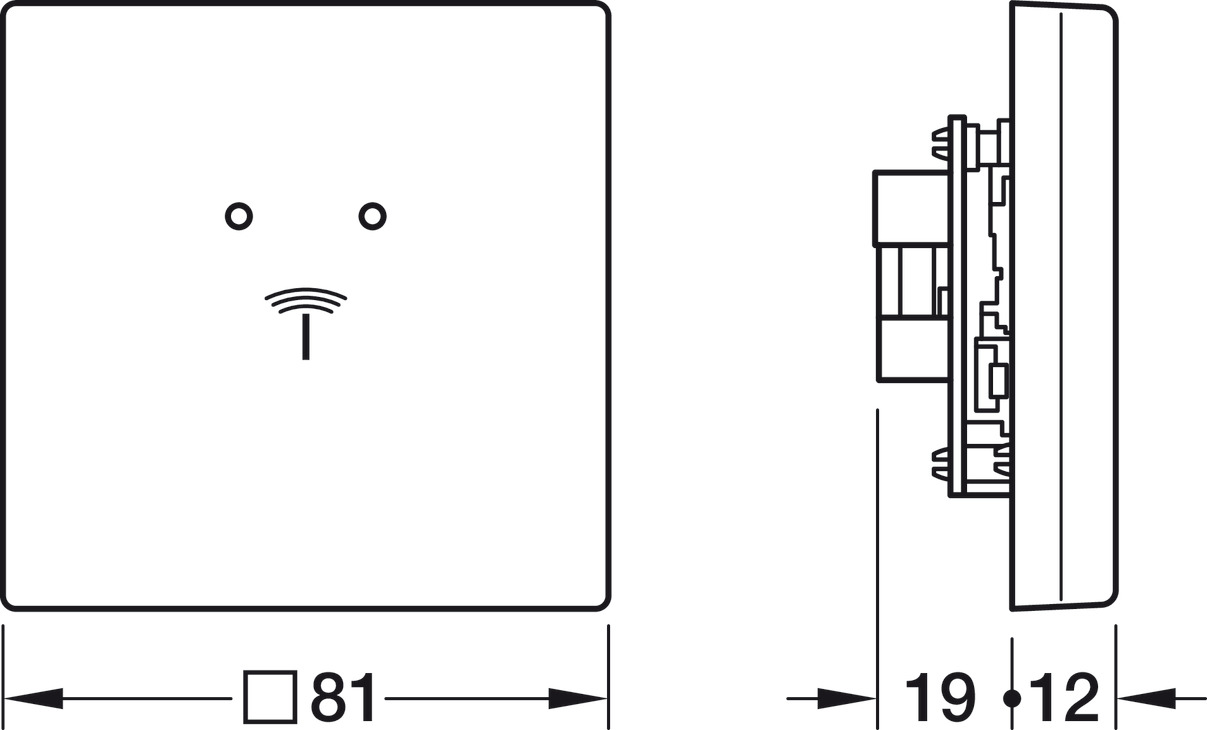

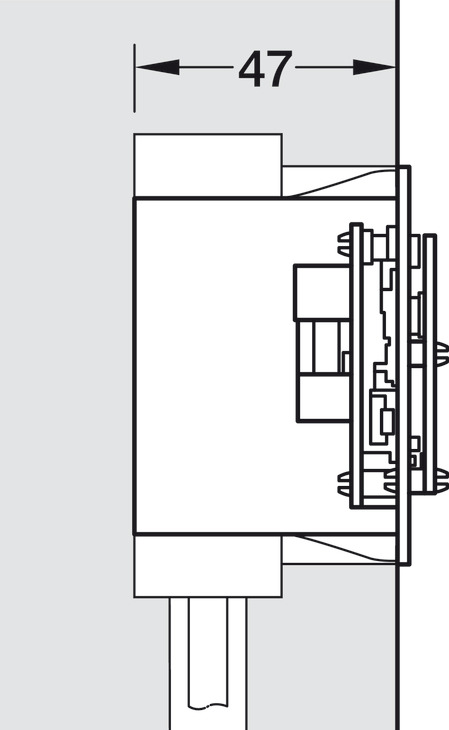

Technical dataPower supply voltage12–24 V DC (±15 %)Current consumption max. (12 V)0.2 APower Consumption max.2.4 WOutput relais (NO, NC, COM) max.48 V AC/DC, 5 A, 48 WAlarm relais (AL1, AL2) max.48 V DC, 1 A, 25 WDigital input (N+, IN-)5 V DC, 12 mASerial interface (A, B)RS-485Cable typeJ-Y(St) Y2 x 2 x 0.8Usable wire cross-section0.08?–?1.3 mm²Cable length max. (12 V)100 mCable length max. (24 V)400 mAmbient temperature-25?–?70 °CRelative humidity10?–?95 % not condensedSignalling1x LED red, 1x LED greenPiezo signal generatorDimensions81 x 81 mmInstallation depth19 mmCatalog Pages
